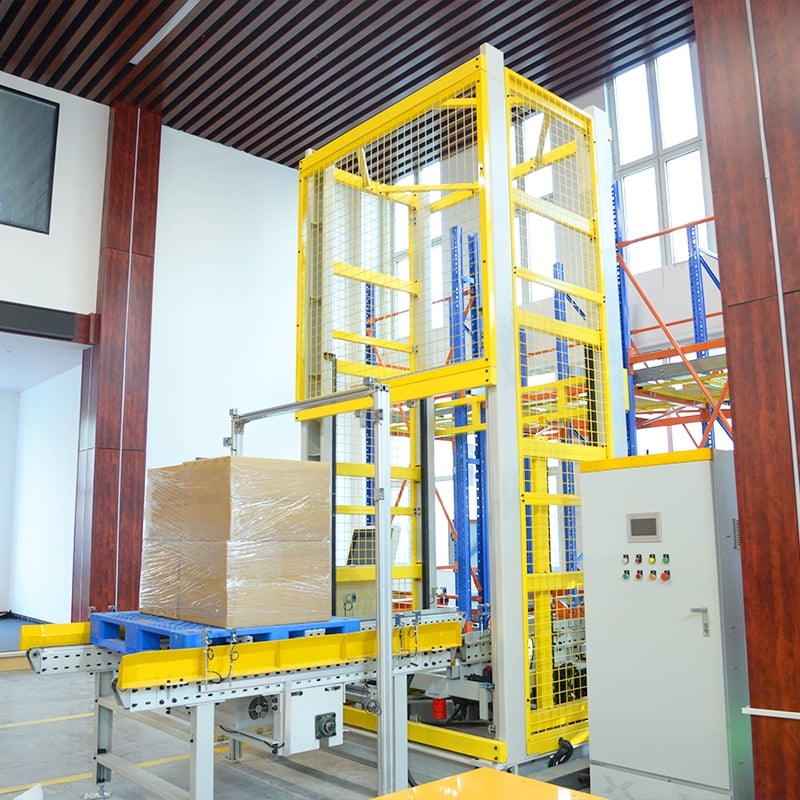

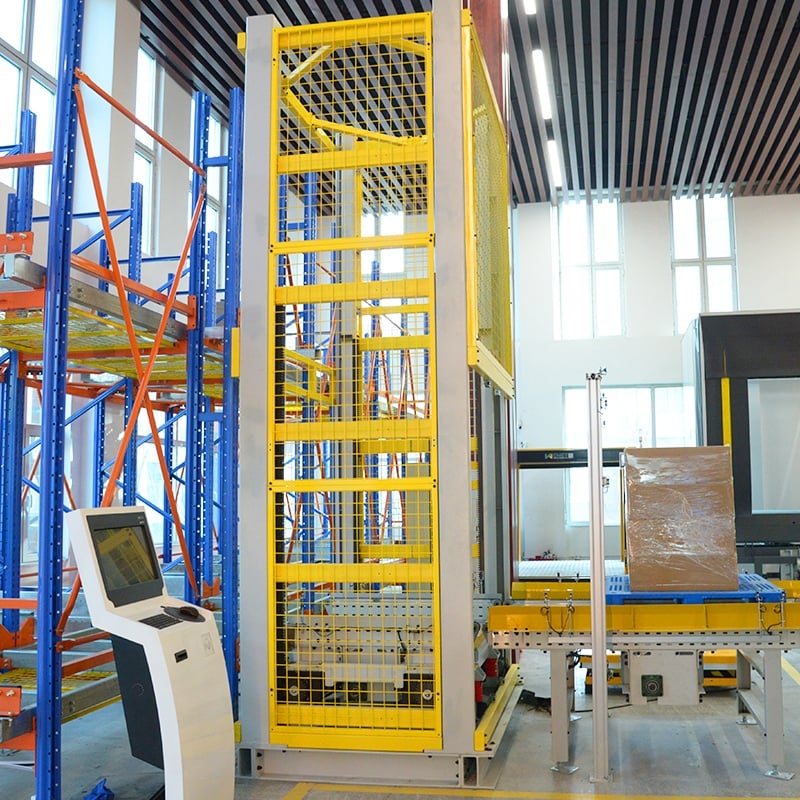

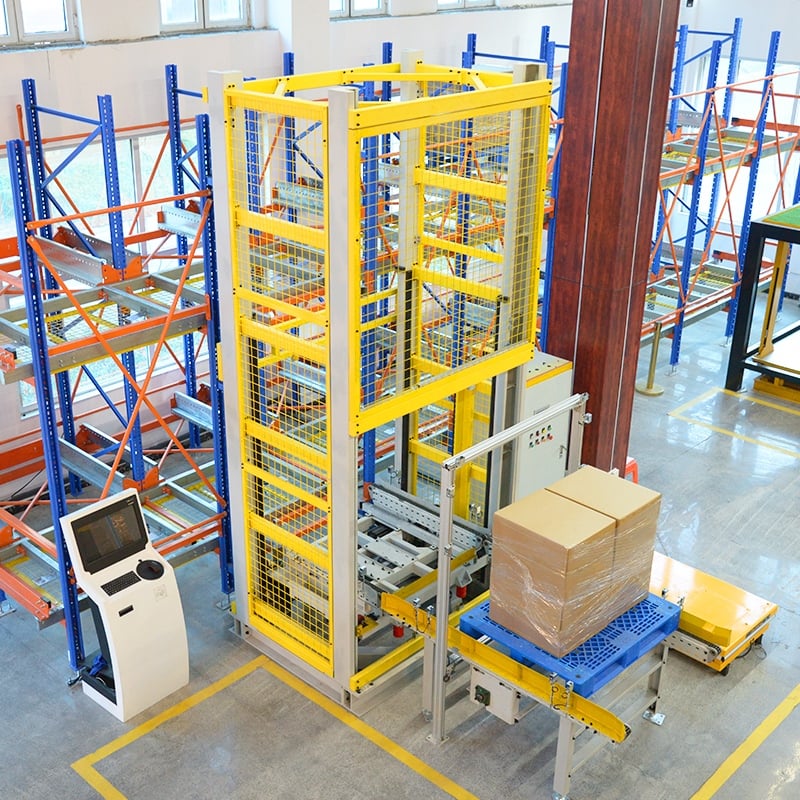

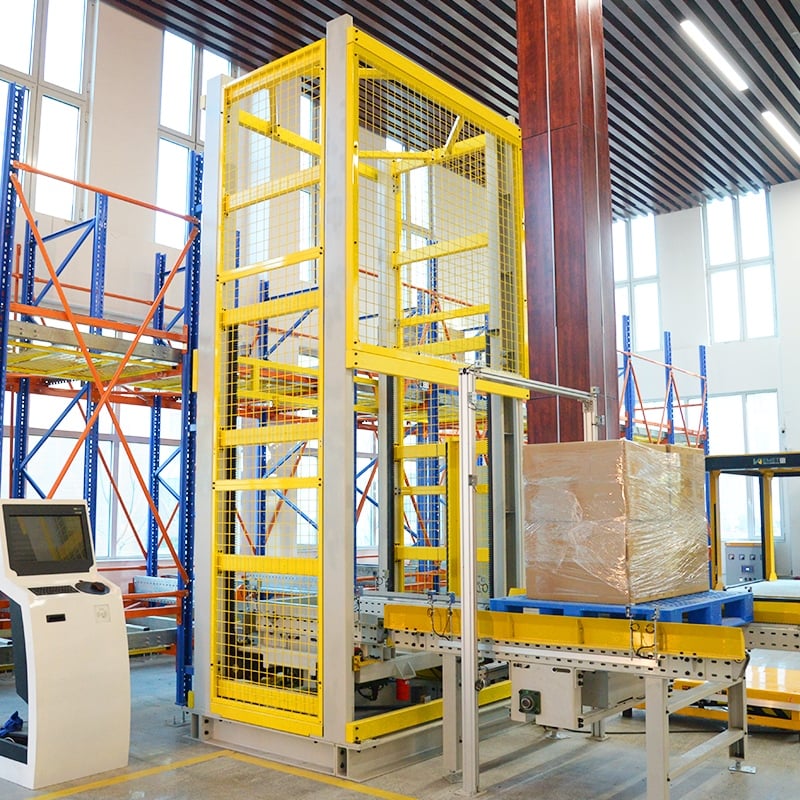

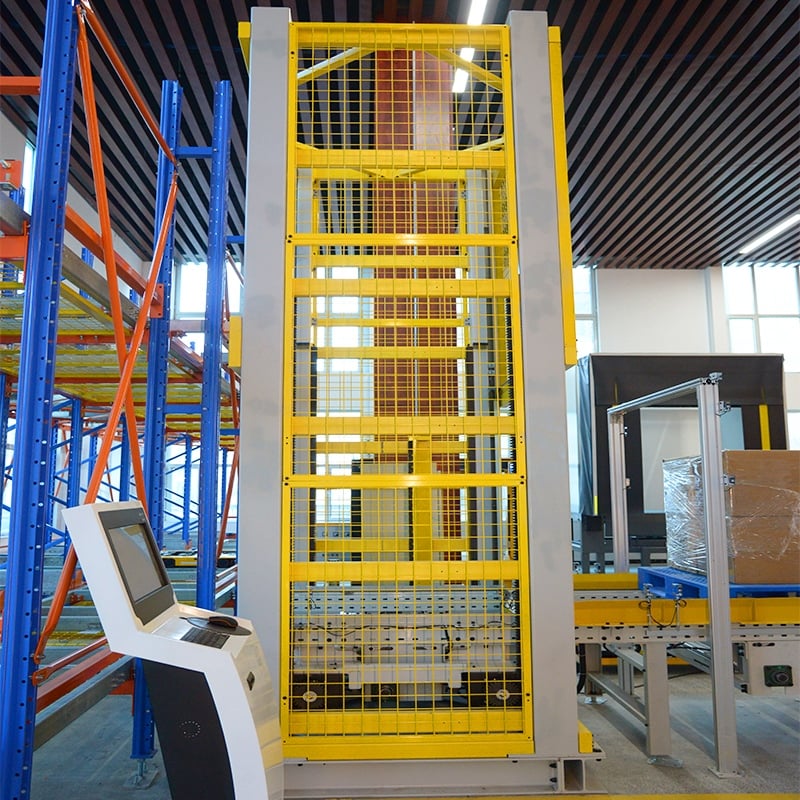

High Speed Vertical Hoist
High-speed vertical hoist is a key piece of equipment in automated storage and retrieval systems (AS/RS) responsible for the vertical transport of goods between different floors or shelf levels. It achieves lifting and lowering through motor-driven chains, belts, or wire ropes, and works in conjunction with WMS/WCS systems to complete inbound and outbound tasks.
- Overview
- Recommended Products
- Efficiency Improvement: Compared to traditional stacker cranes operating alone, inter-floor throughput is increased by approximately 25%.
- High Space Utilization: Combined with four-way vehicles, AGVs, and other equipment, the number of aisles is reduced, achieving rack utilization of over 85%.
- High Automation: Integrates with WMS and WCS systems, automatically receiving tasks and optimizing routes for unmanned operation.
- High Safety: Equipped with multiple safety features (guardrails, sensors, fall arrestors, etc.) to reduce cargo damage and personnel risks.
Product Information
| Place of Origin | Shandong, China |
| Brand Name | wemet |
| Model Number | |
| Certification | CE / ETL / ISO 9001 |
| Applicable Industries | |
| Customized Products | All equipment can be customized. |
Product Business Terms
| Minimum Order Quantity | Single item |
| Packaging Details | Wooden box |
| Delivery Time | 15~45 days (To be negotiated) |
| Supply Ability | 300 acres per Month |
Description
1.Fully Automated: Utilizes in conjunction with inlet and outlet logistics equipment to automate the conveying process, ensuring safety and stability. Cross-level handling enables the tandem operation of multiple four-way shuttles.
2.Application Scenario: Assists four-way shuttles in level changes, reducing the number of unnecessary four-way shuttles.
3.Servo Drive: Servomotor-driven, minimizes sinkage and achieves vertical positioning accuracy within 2mm.
4.Rack-and-Pinion: Utilizes rack-and-pinion transmission for vertical and horizontal transmission, enhancing safety.
Comparative Advantage: Combined with a dispatching system, it supports tiered and zoned operations, maximizing overall efficiency.
Quick Detail
1.PTR-VM Multi-purpose: Dedicated to pallet handling robots (PTR-HDG) for both inbound and outbound operations.
2.PTR-VS Standard: Precise and efficient vertical transport of PTRs and goods.
PTR-VL Self-loading/unloading: Enables autonomous loading and unloading of goods without the need for additional conveyor equipment.
Applications
High-speed vertical hoists are widely used in e-commerce sorting centers, pharmaceutical cold chain warehousing, food and beverage automated warehouses, automotive parts, electronic components, hardware and machinery industries, etc., to meet the needs of high-density storage, high-frequency inbound and outbound operations, and special environments (low temperature, explosion-proof).
Specifications
| Dimensions (mm) | 1950L*1350W*Customizable | Customizable according to project |
| Pallet Size (mm) | 1200L*1000W*150H | Customizable according to project |
| Drive Method | Servo | |
| Drive Motor | International top brand | |
| Lifting Speed | 0.3-0.6m/s | Variable frequency speed regulation |
| Conveying Efficiency (Pallets/Hour) | 50-70t/h | Customizable according to project |
| Addressing Method | Photoelectric addressing, addressing accuracy: ±5mm | |
| Braking Method | Power-off trigger | Ensure system safety during power outages |
| Power Supply Method | Cable | |
| Certification | CE / ETL / ISO 9001 |
* Support on-demand customization, the parameters are for reference only, please consult the WEMET Machinery Sales Department for details.
