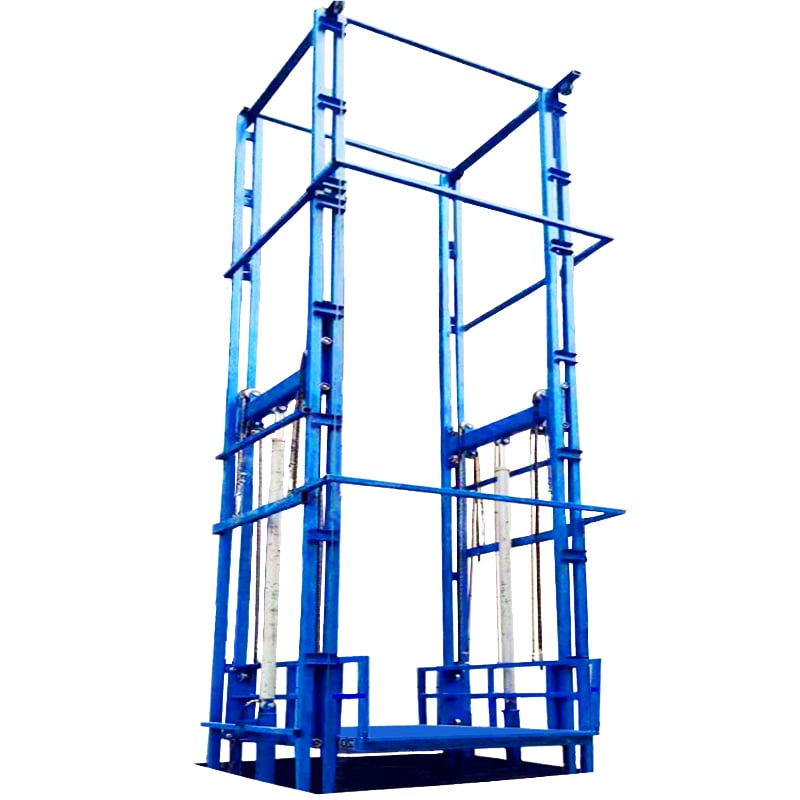

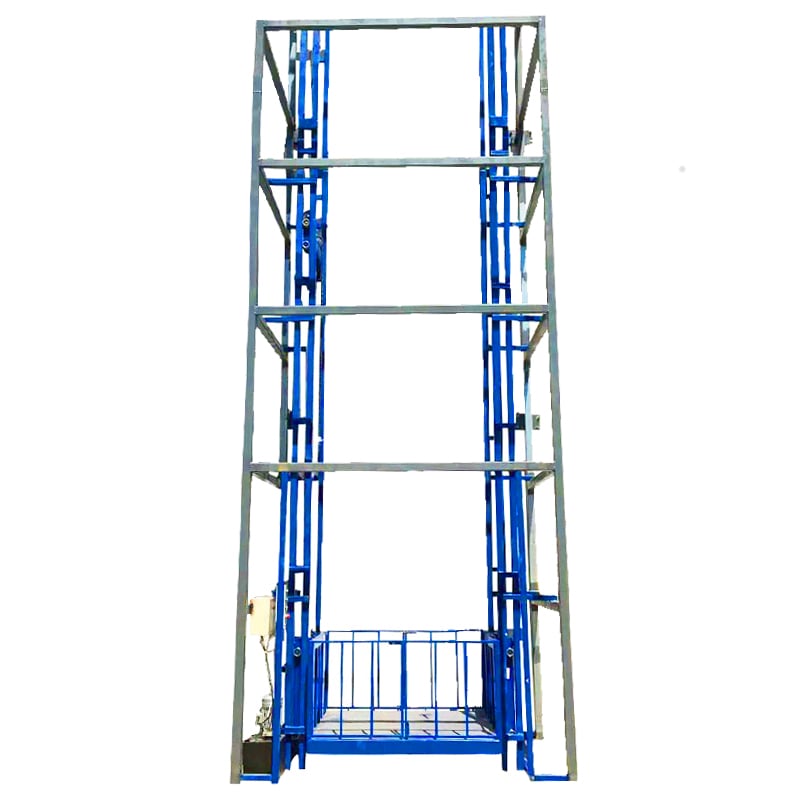

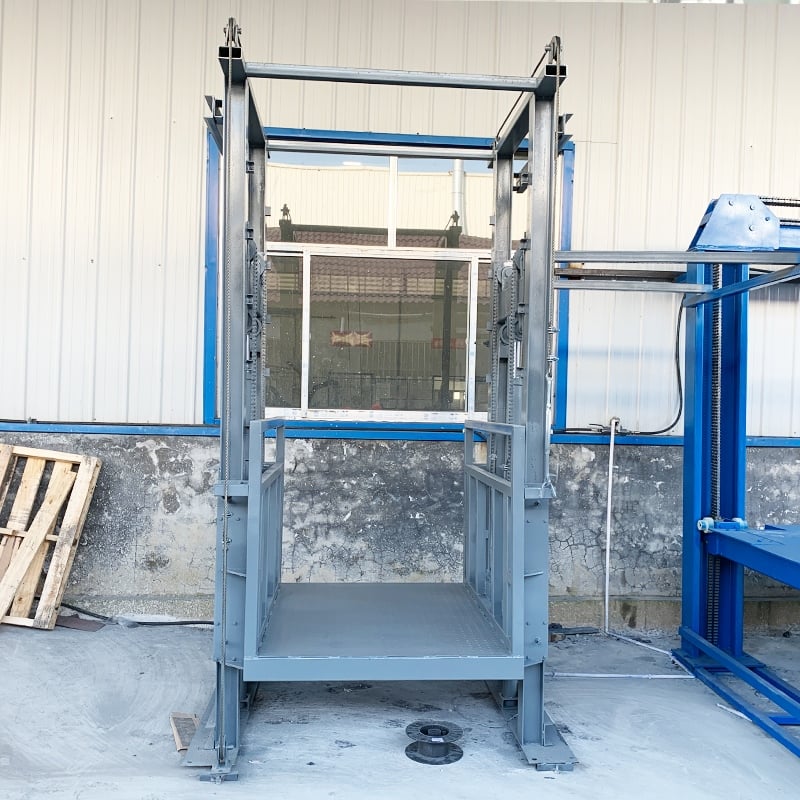

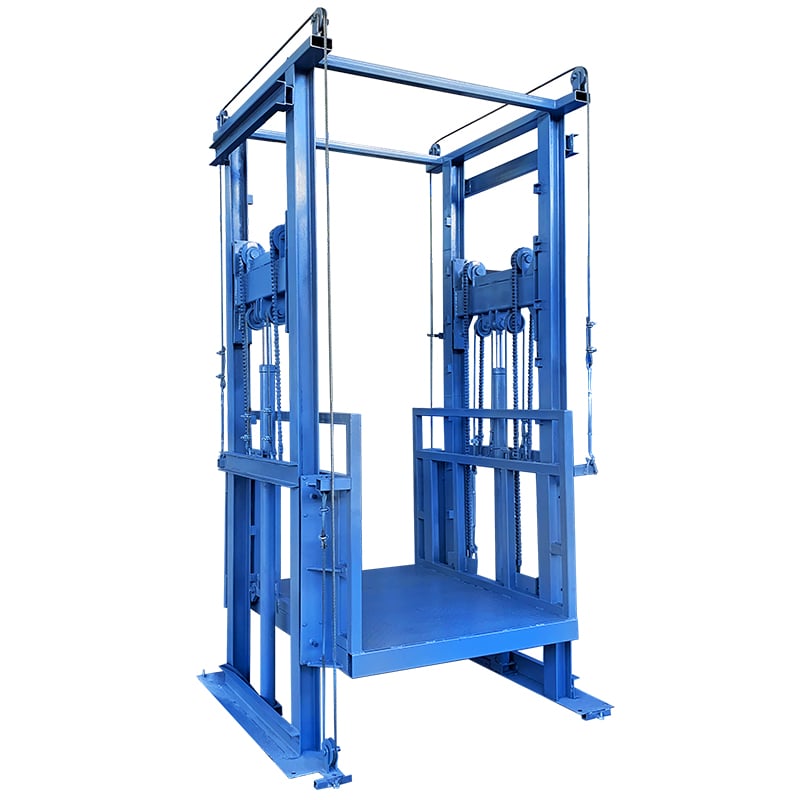

Double Guide-Rail Lift Platform

The Double Guide-Rail Lift Platform is a hydraulic lifting device with a double guide rail structure, mainly used for vertical transportation of goods in industrial plants, warehouses, restaurants, and other similar locations. Powered by a hydraulic pump station, it drives the cylinders to extend and retract, moving the lifting platform up and down along the guide rails. It features a stable structure, large load capacity, and smooth operation.

Overview
Recommended Products

Product Information

Place of Origin	Shandong, China
Brand Name	wemet
Certification	CE/ISO
Applicable Industries	Building Material Shops, Farms, Home Use, Printing Shops, Hotels, Garment Shops
Customized Products	All equipment can be customized.

Product Business Terms

Minimum Order Quantity	Single item
Packaging Details	Wooden box
Delivery Time	15~45 days (To be negotiated)
Supply Ability	300 acres per Month

Description

1.High-strength rectangular steel or H-shaped steel guide rails are used.
2.The platform is integrally formed and has a load capacity of 0.5 to 5 tons.
3.For loads up to 5 tons, it can achieve a maximum ascent speed of 12 m/min.
4.It features dual transmission protection, with the leaf chain and wire rope efficiently synchronized.
5.Full-Stroke system , double transmission protection during system failure ensure that the platform does not fall suddenly.
6.Power off when door is opened. The control circuit is disconnected when the door is opened, the equipment will not work.
7.An emergency manual valve allows for emergency descent to the lowest level.
8.An explosion-proof valve automatically maintains pressure in the cylinder in the event of a pipe rupture.
9.A pressure feedback system automatically stops the equipment in the event of a jam.
10.A self-diagnostic system automatically displays fault codes for easy troubleshooting.

Quick Detail

1.Dual transmission protection
2.Fault self-diagnosis system
3.Power-off system when door is opened
4.Pressure feedback system
5.Emergency manual lowering valve
6.Explosion-proof valve
7.Overload alarm
8.Full-stroke anti-fall function
9.Fault self-diagnosis system
10.Optional explosion-proof

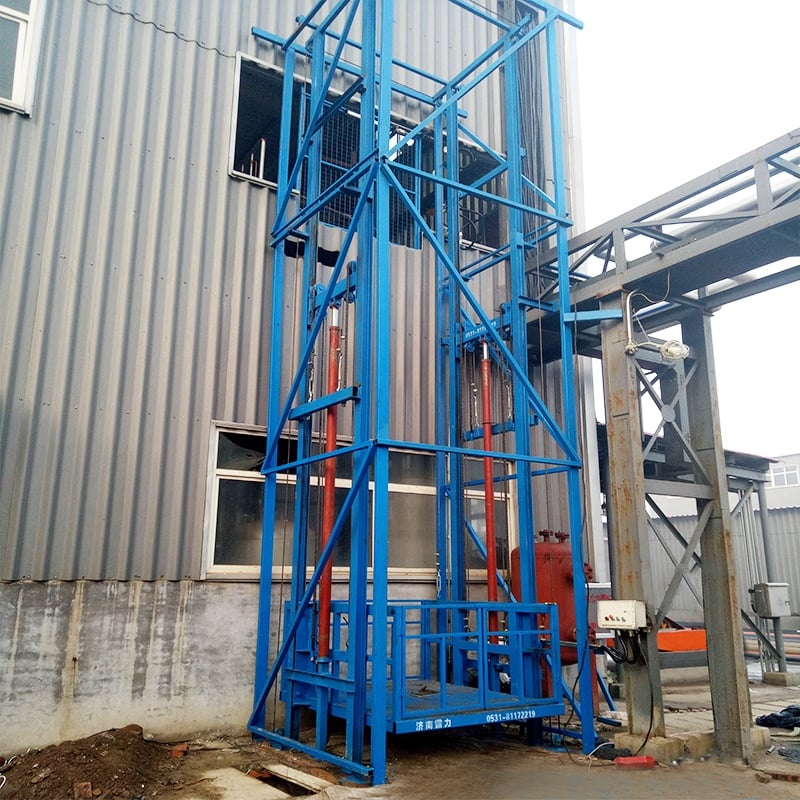

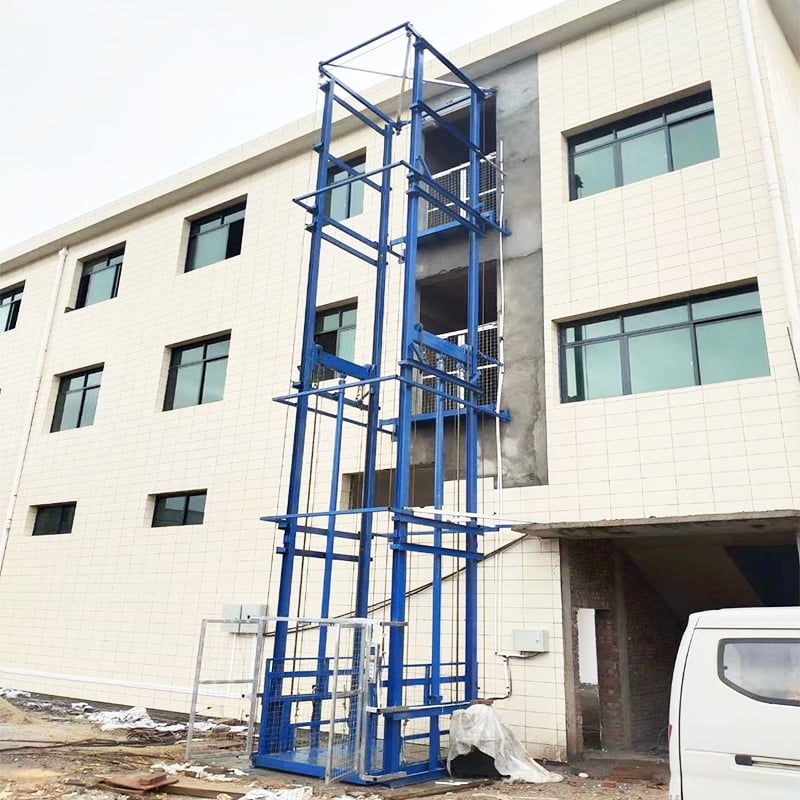

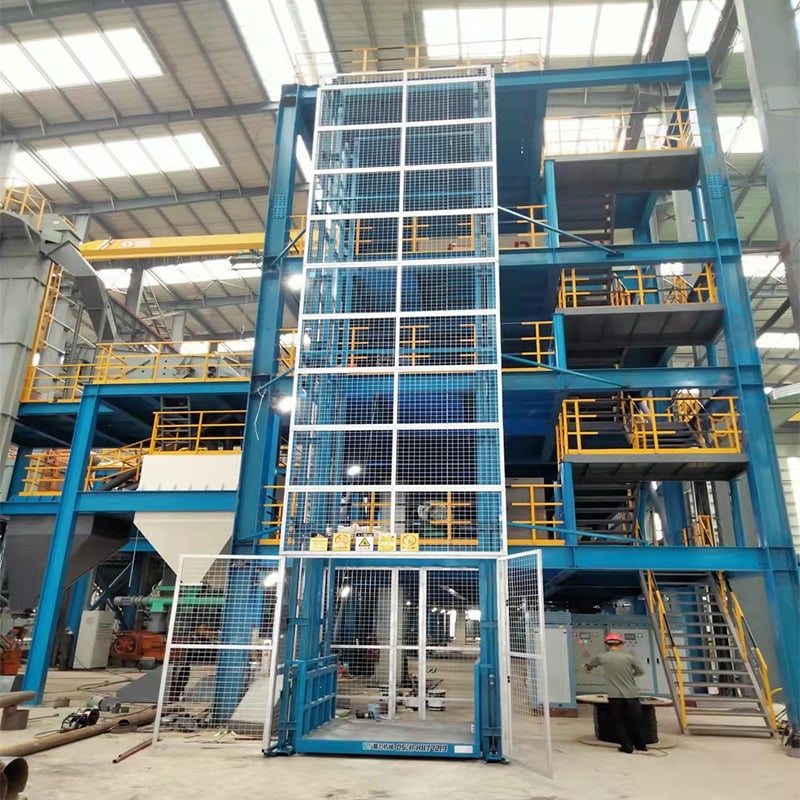

Applications
Double Guide-Rail Lift Platter Forms are widely used for cargo transportation in industrial plants, warehouse renovations, restaurants, and other similar locations. They are particularly suitable for 2-6 story steel structure plants, and can be installed both indoors and outdoors. No machine room or overhead suspension points are required, making installation and maintenance simple and convenient.

Specifications

Model	SJD
Table Dimensions (L x W)	3000*6000mm
Load Capacity	5-30t
Lifting Height	2-15m
Equipment Height	Lifting height +2500mm
Entry/Exit Direction	0°, 90°, 180°
Drive Type	Hydraulic drive system
Lifting Speed	3-15m/min
Power Supply	220V/380V/Customizable
