Single Guide-Rail Lift Platform

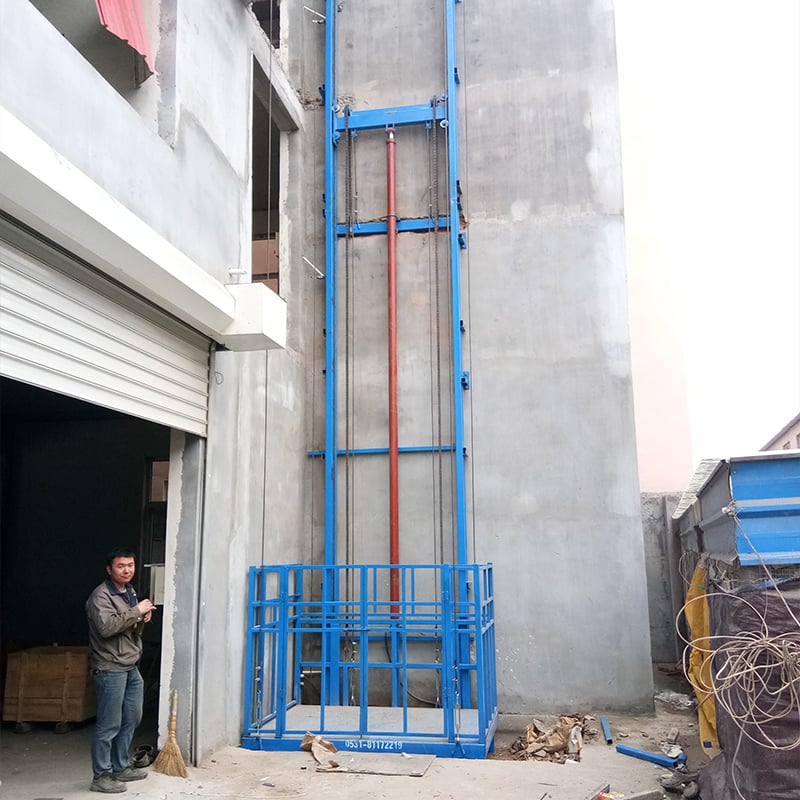

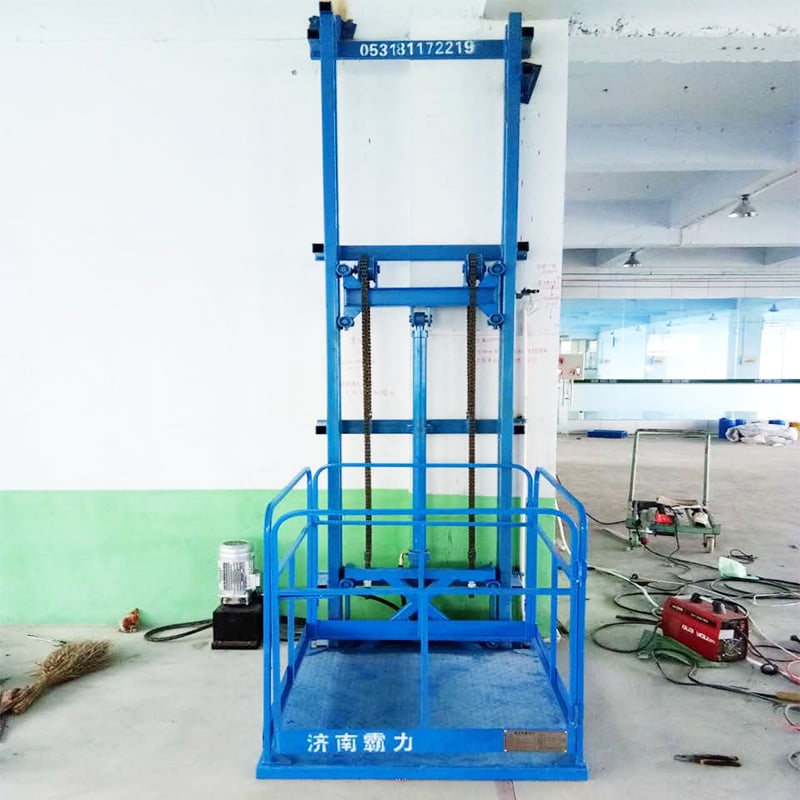

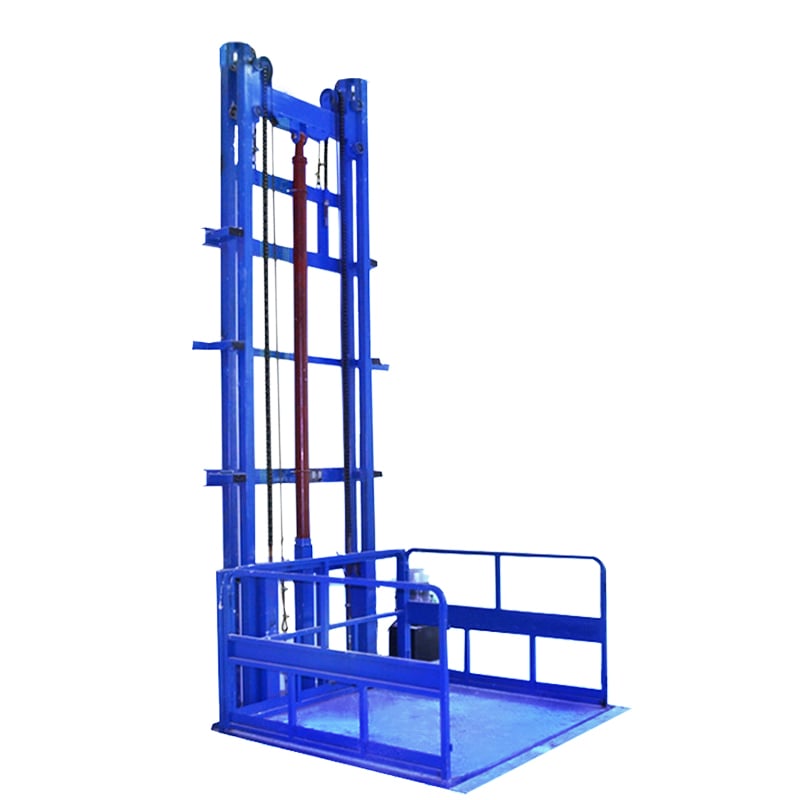

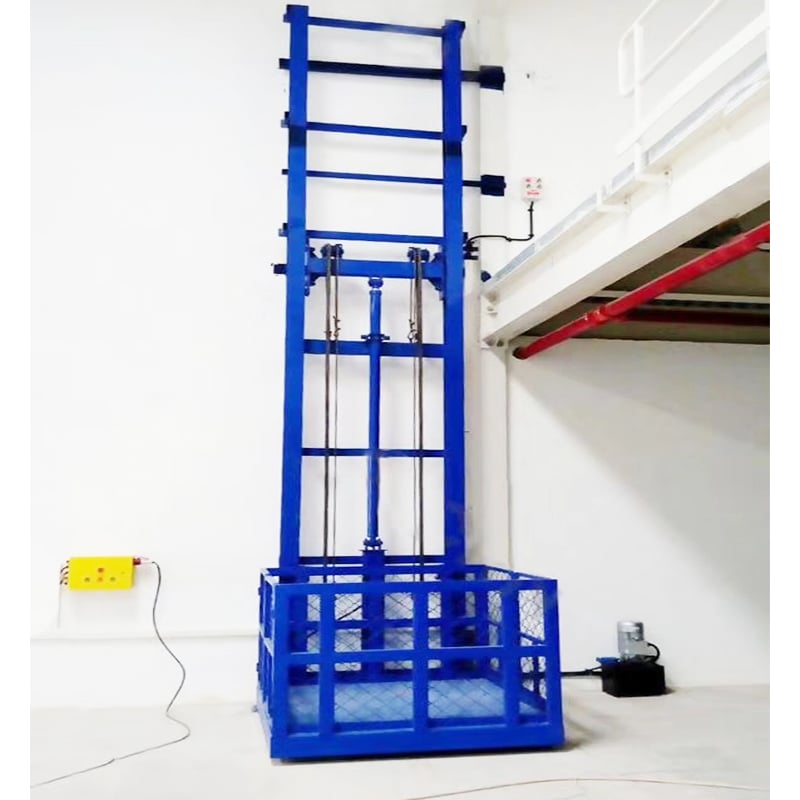

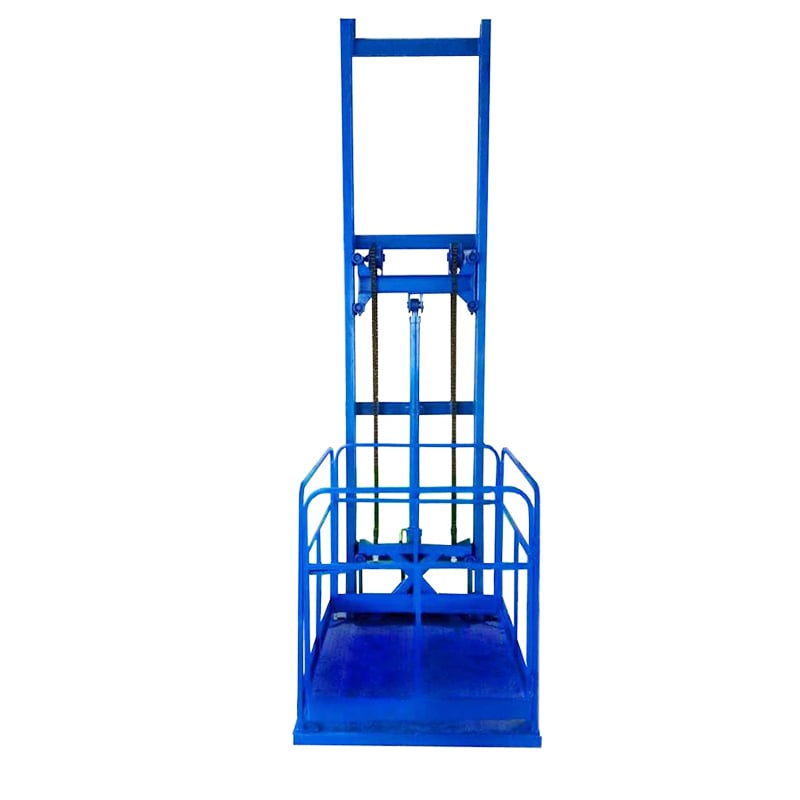

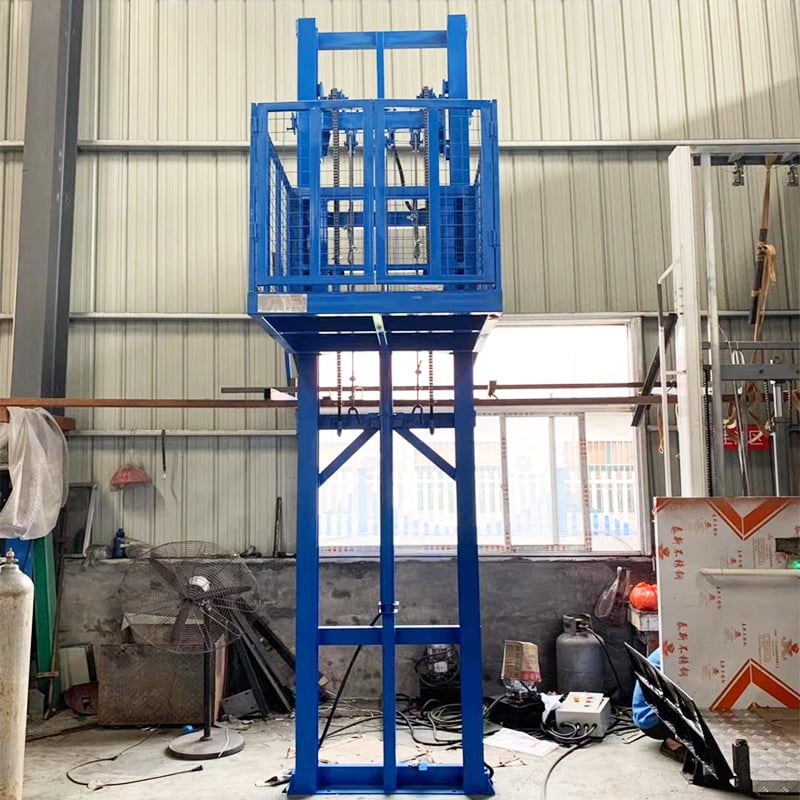

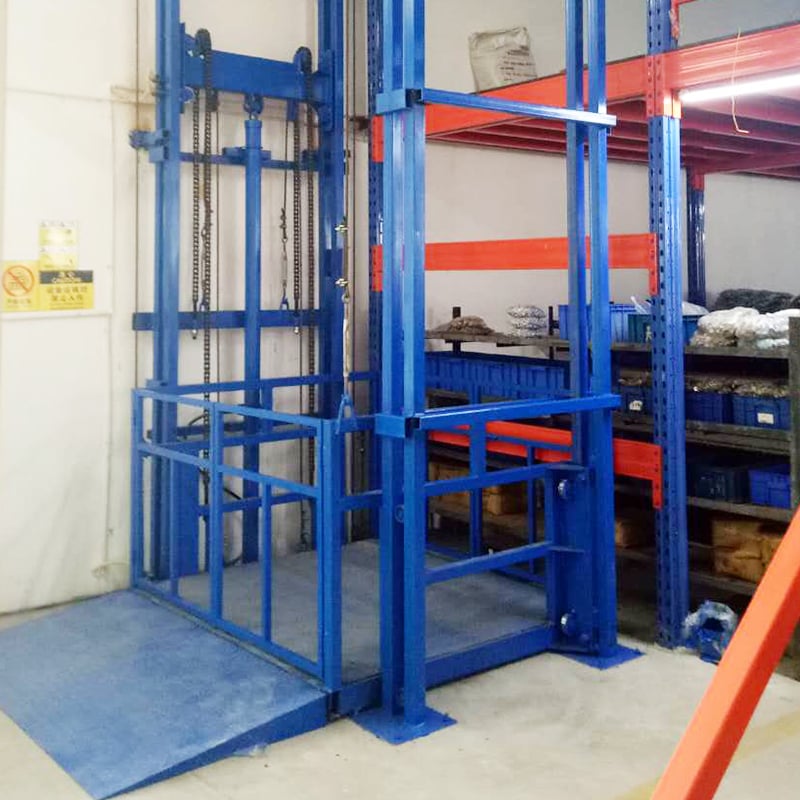

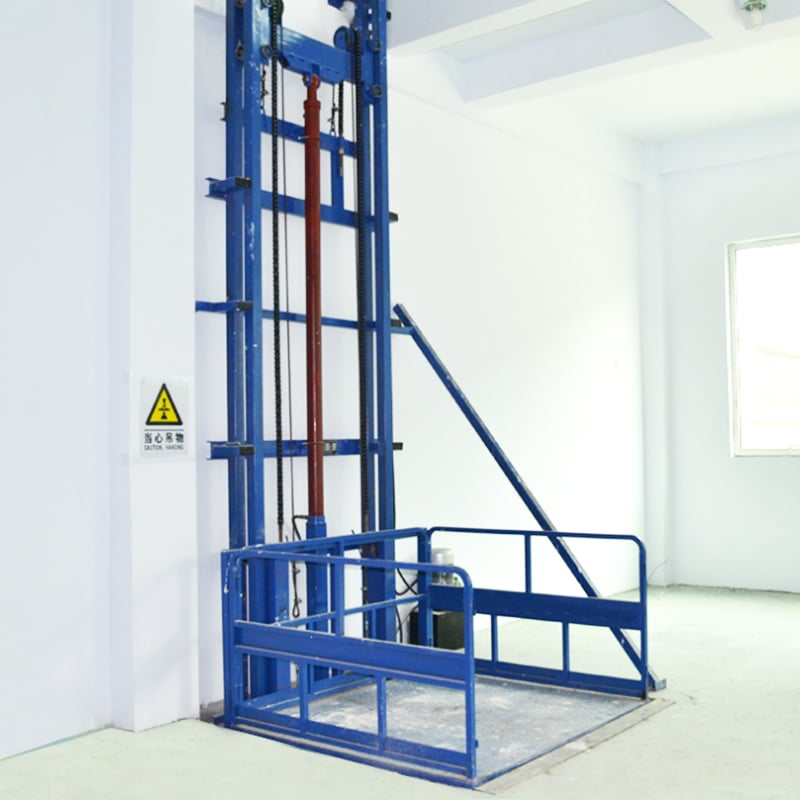

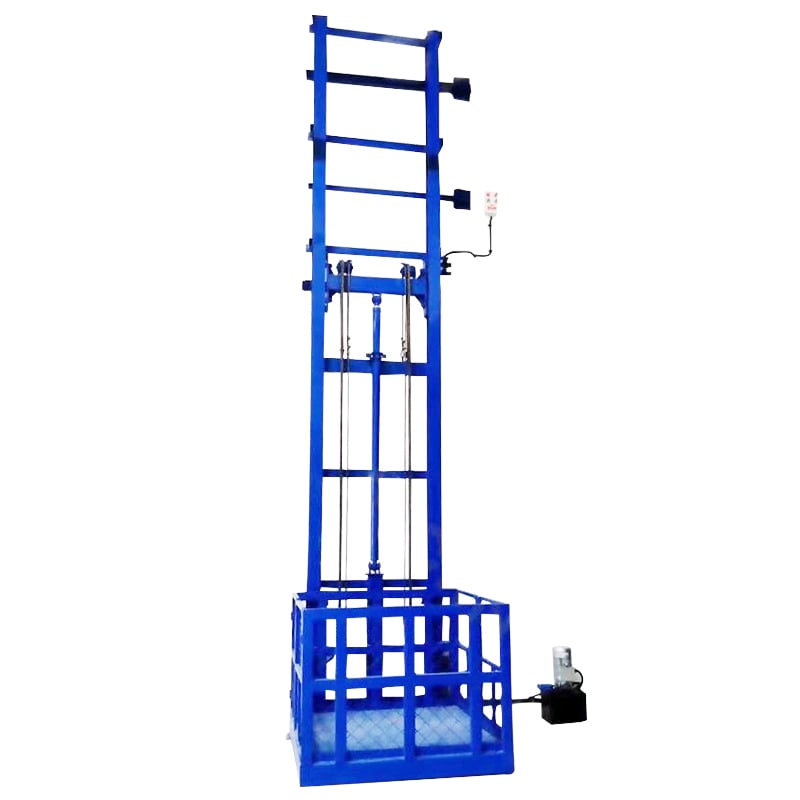

The Single Guide-rail Industrial Lift Platform is a guide-rail hydraulic lifting device with a single-cylinder, single-arm structure, primarily used for high-altitude cargo transportation between floors. Its key features are its compact structure and small footprint, making it particularly suitable for environments with light load capacities and limited platform size requirements.

Overview
Recommended Products

Product Information

Place of Origin	Shandong, China
Brand Name	wemet
Certification	CE/ISO
Applicable Industries	Building Material Shops, Farms, Home Use, Printing Shops, Hotels, Garment Shops
Customized Products	All equipment can be customized.

Product Business Terms

Minimum Order Quantity	Single item
Packaging Details	Wooden box
Delivery Time	15~45 days (To be negotiated)
Supply Ability	300 acres per Month

Description

1.High-strength rectangular steel or H-shaped steel is used as the guide rail.
2.The platform is formed as a whole, bearing 0.5~1 ton.
3.Double transmission protection, plate chain and wire rope efficient synchronization.
4.Equiped with audible alarm which is triggered when equipment is overloaded and stops operation.
5.Full-stroke anti-drop system, double transmission protection after system failure the table does not fall rapidly.
6.Emergency manual valve, during a power outage, can achieve emergency drop.
7.Safety power off system, the control circuit is disconnected when the door is opened, the equipment cannot run.
8.With explosion-proof valve, oil cylinder can automatically maintain pressure after tubing burst.
9.Pressure feedback system, the equipment automatically stops when the operation encountered obstacles.
10.Fault self-diagnosis system. Fault code is automatically displayed for easy maintenance.

Quick Detail

1.Dual transmission protection
2.Fault self-diagnosis system
3.Power off when door is opened
4.Pressure feedback system
5.Emergency manual lowering valve
6.Explosion-proof valve

Applications:
Building Material Shops, Farms, Home Use, Printing Shops, Hotels, Garment Shops

Specifications:

Model	SJD
Table Dimensions (L x W)	1200*1200mm
Load Capacity	0.5-1t
Lifting Height	2-15m
Equipment Height	Lifting height +1800mm
Entry/Exit Direction	0°, 90°, 180°
Drive Type	Hydraulic drive system
Lifting Speed	3-15m/min
Power Supply	220V/380V/Customizable
