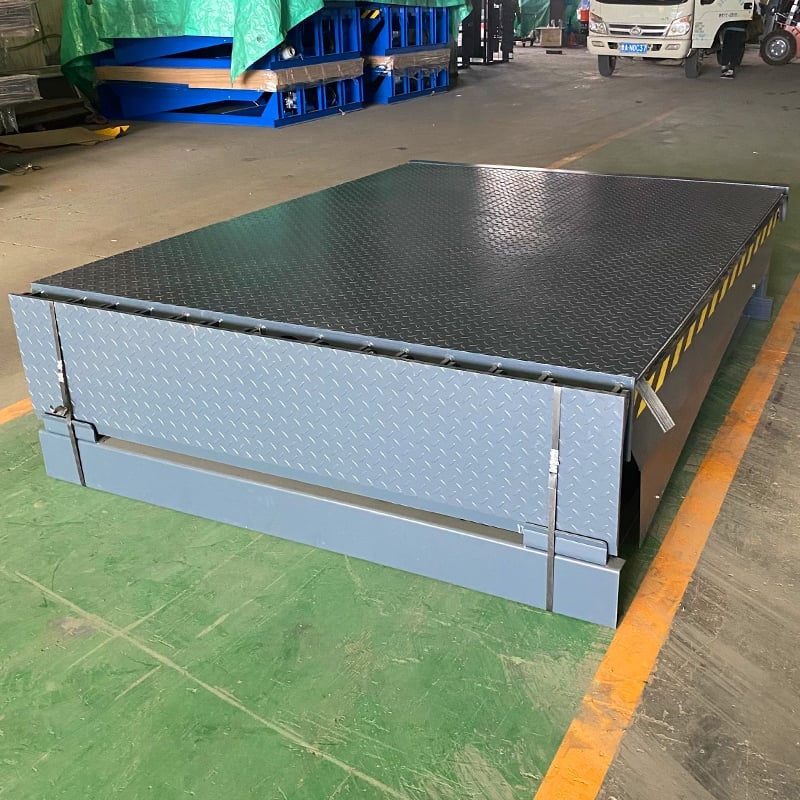

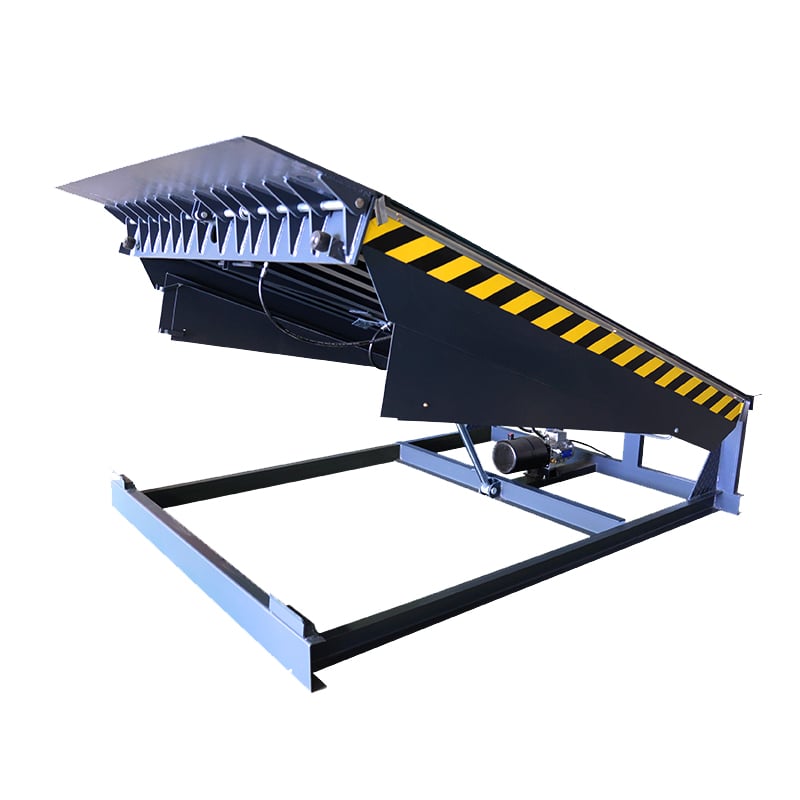

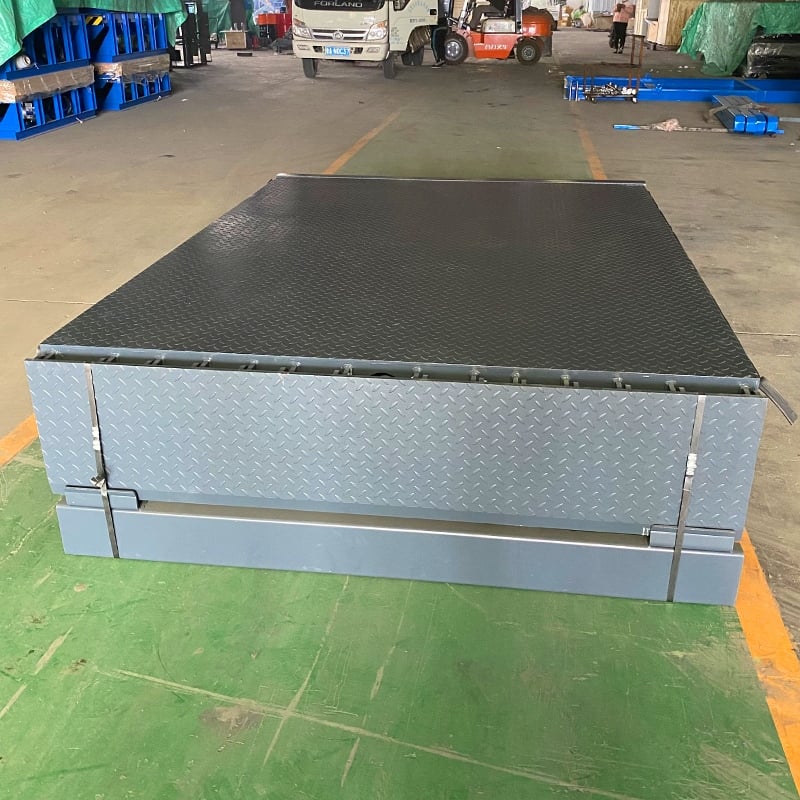

Stationary Dock Leveler

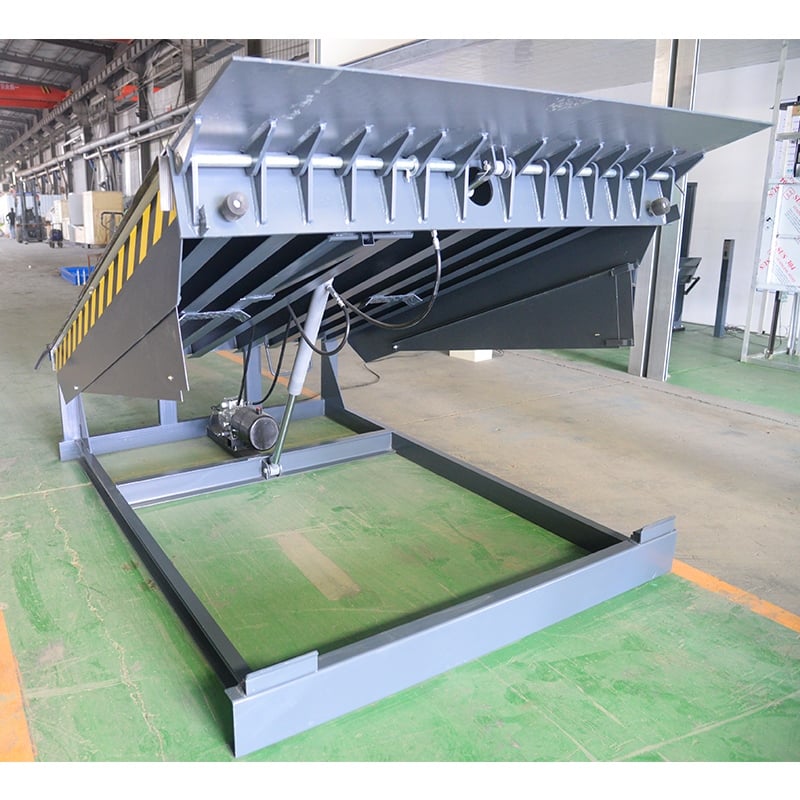

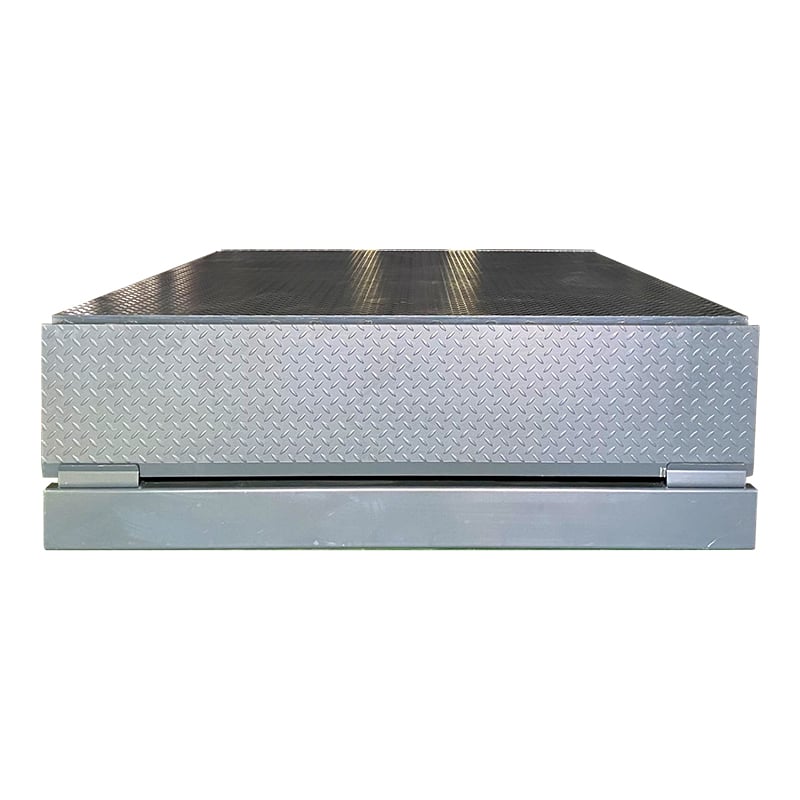

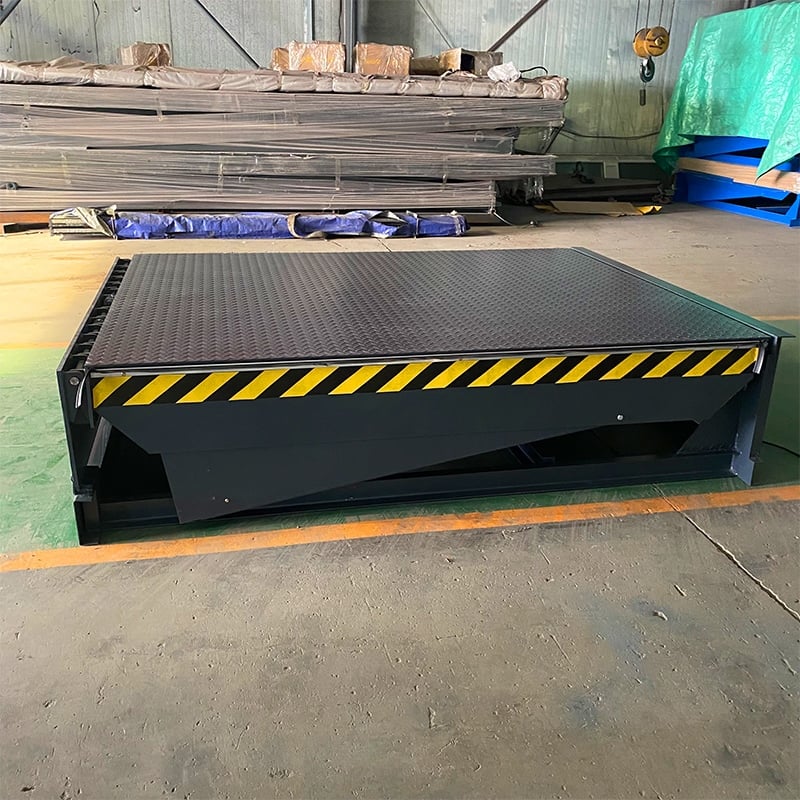

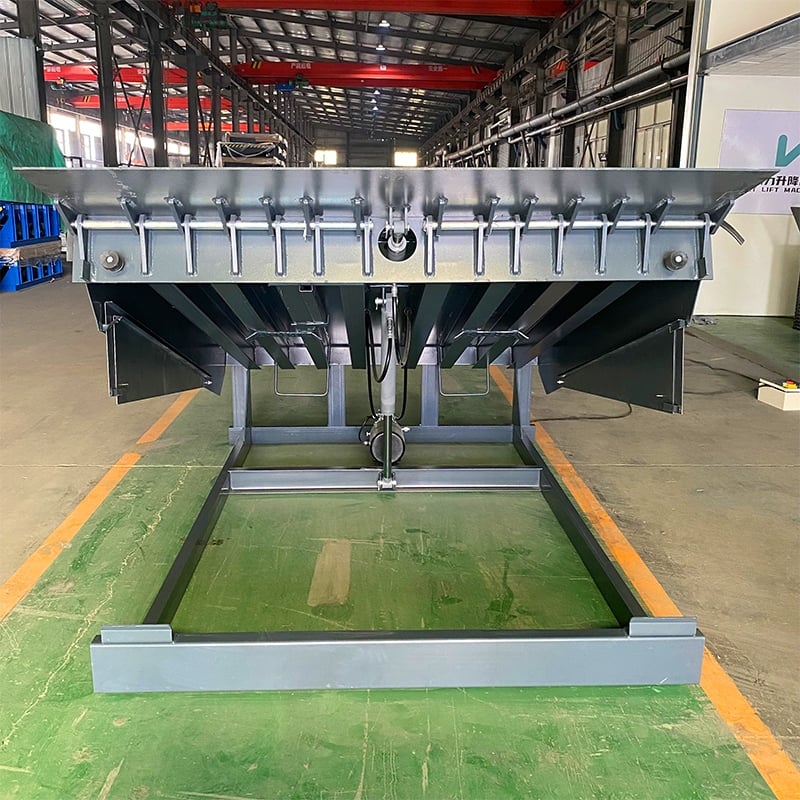

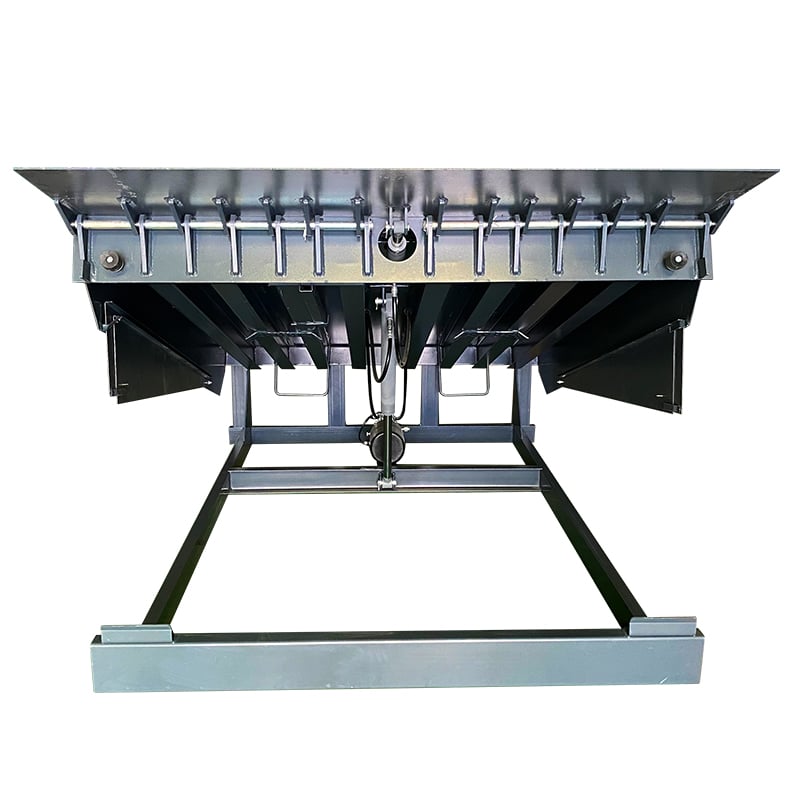

Stationary Dock Leveler is a loading and unloading auxiliary device installed on a warehouse platform. It adjusts its height through a hydraulic system, connecting the truck bed to the warehouse floor to form a bridge passage, facilitating forklifts and other handling vehicles to directly enter and exit the truck bed for loading and unloading operations.
- Overview
- Recommended Products
Product Information
| Place of Origin | Shandong, China |
| Brand Name | wemet |
| Certification | CE/ISO |
| Customized Products | All equipment can be customized. |
Product Business Terms
| Minimum Order Quantity | Single item |
| Packaging Details | Wooden box |
| Delivery Time | 15~45 days (To be negotiated) |
| Supply Ability | 300 acres per Month |
Description
1.Fully hydraulic drive, easy operation and reliable operation.
2.16mm whole thickened pattern lip plate, moving load bearing stronger.
3.Main table adopts 8mm steel plate without splicing.
4.The lip plate and the platform are connected with open hinge ear, with high coaxial degree and no hidden trouble.
5.Table main beam: 8 high strength I-beam , the spacing between the main beam does not exceed 200mm.
6.The rectangular base structure enhances stability.
7.Precision seals are used to ensure that the hydraulic system has excellent sealing performance.
8.Forefoot skirt on both sides.
9.Push-button control box, with emergency stop button, simpler and safer.
10.Spray paint treatment, better rust resistance.
Quick Detail
1.type base frame
2.16mm whole pieces of tongue plate
3.8mm thick main plate
4.8 I-beam main beams
5.5 rear columns
6.Push-button control panel
7.Optional remote control
8.Emergency stop button
9.Push-button control panel
Applications

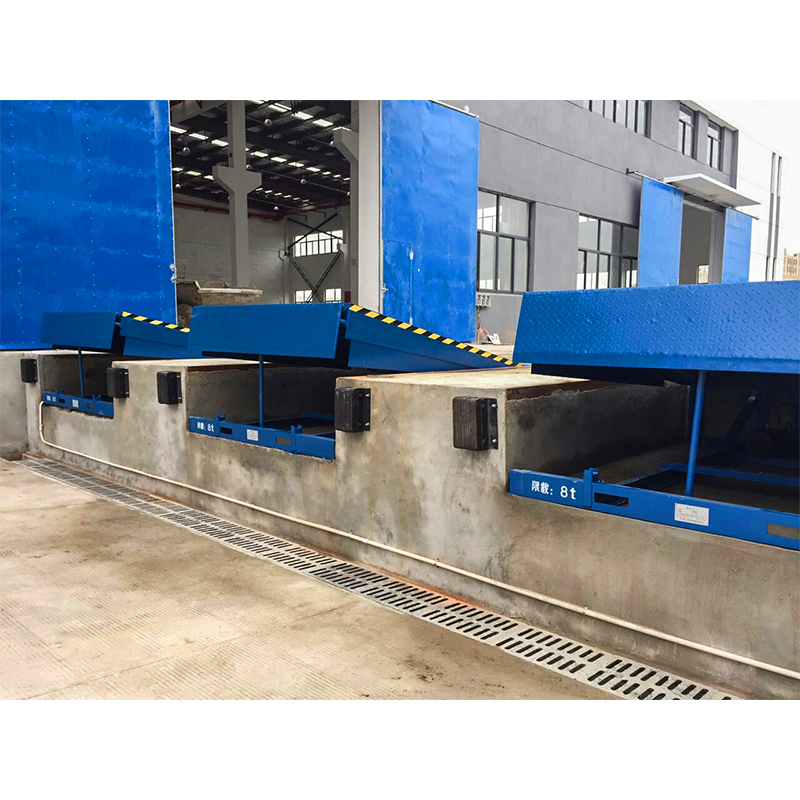

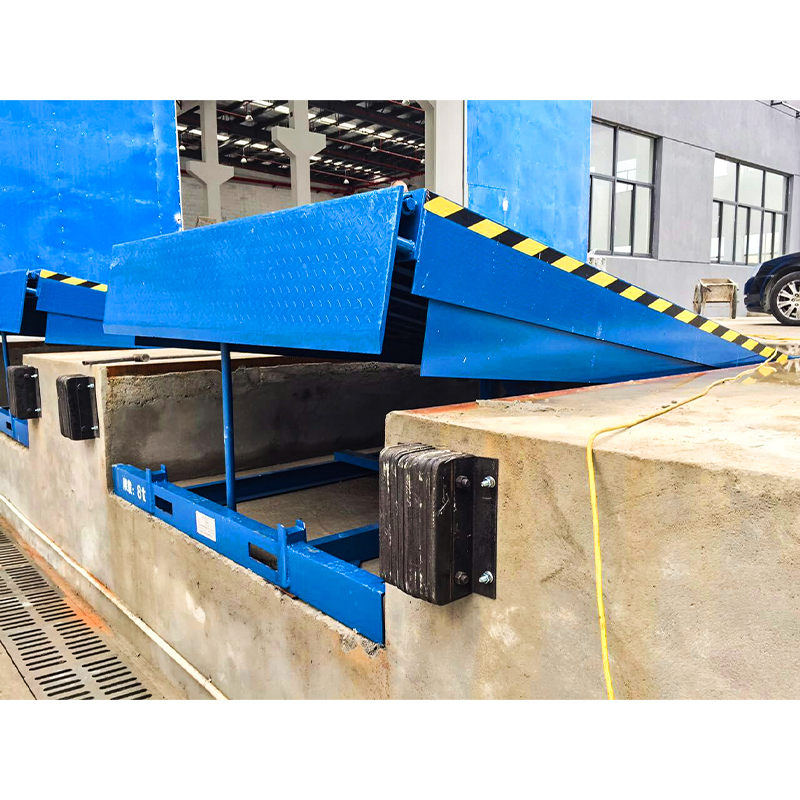

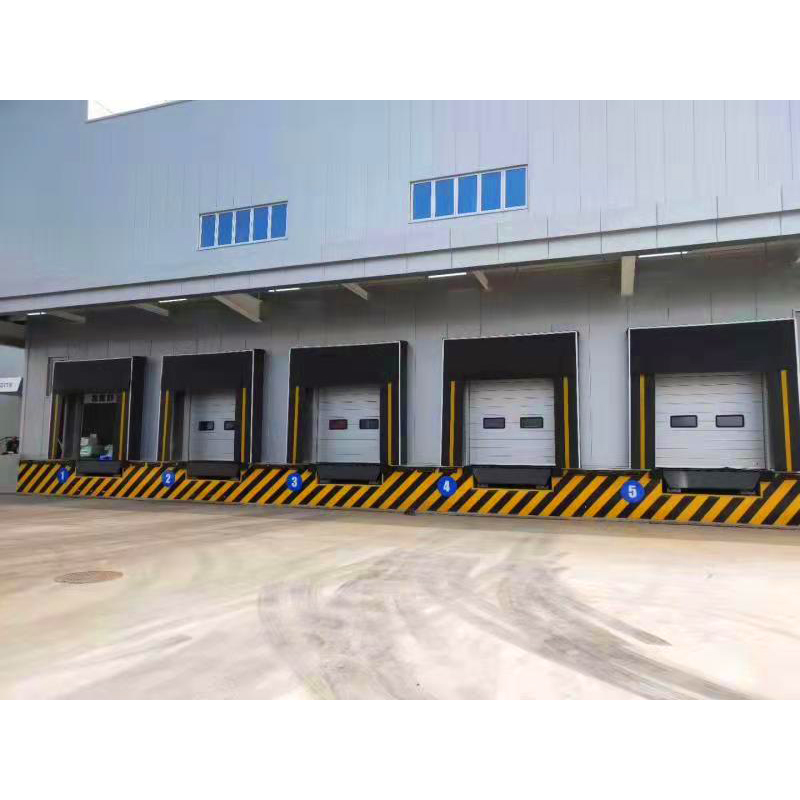

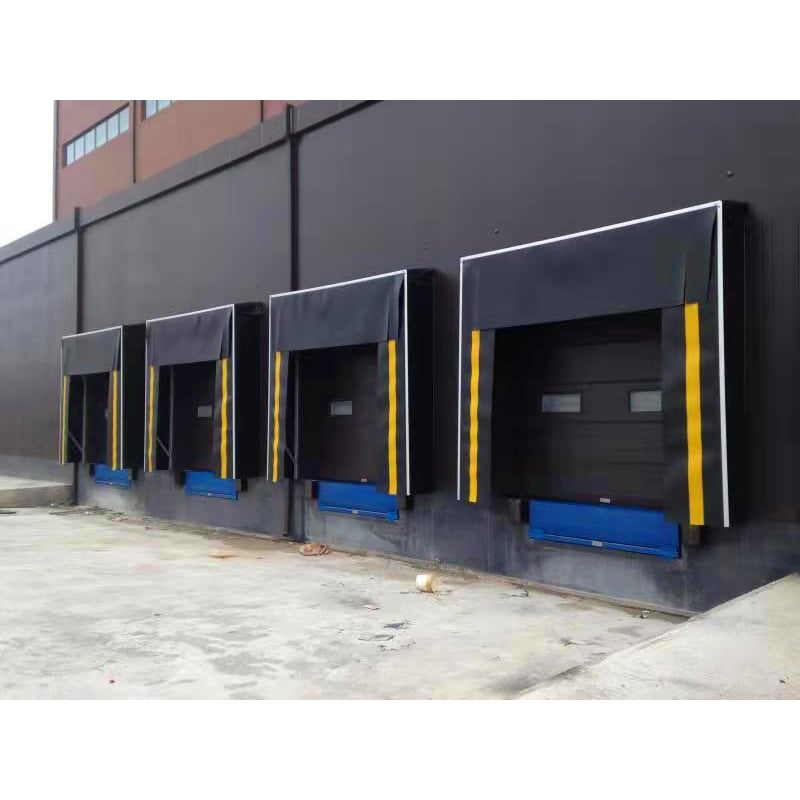

Stationary Dock Levelers are widely used in logistics centers, warehousing bases, railway stations, docks, factory warehouses, distribution centers, and other places. They are especially suitable for large enterprises with frequent loading and unloading of vehicles of different models.
Specifications
| Model | Platform Size（mm） | Load Capacity(t) | Overall Dimension(mm) | Adjustable Lifting Range(mm) |
| AG-8 T | 2000*2000 | 8 | 2000* 2000* 600 | -300/+400 |
| 2500*2000 | 8 | 2500* 2000* 600 | -300/+400 | |
| 3000*2000 | 8 | 3000* 2000* 600 | -300/+400 | |
| AG-10T | 2000*2000 | 10 | 2000* 2000* 600 | -300/+400 |
| 2500*2000 | 10 | 2500* 2000* 600 | -300/+400 | |
| 3000*2000 | 10 | 3000* 2000* 600 | -300/+400 | |
| AG-12T | 2000*2000 | 12 | 3000* 2000* 600 | -300/+400 |
| 2500*2000 | 12 | 3000* 2000* 600 | -300/+400 | |
| 3000*2000 | 12 | 3000* 2000* 600 | -300/+400 |
*Support on-demand customization, the parameters are for reference only, please consult the WEMET Machinery Sales Department for details.
Advantages
The Stationary Dock Leveler features electro-hydraulic operation, adjustable height, and a wide adjustment range, significantly improving loading and unloading efficiency and saving labor costs.
The equipment is fully hydraulically driven, ensuring smooth and reliable operation. It is easy to operate, allowing a single person to complete loading and unloading tasks.
