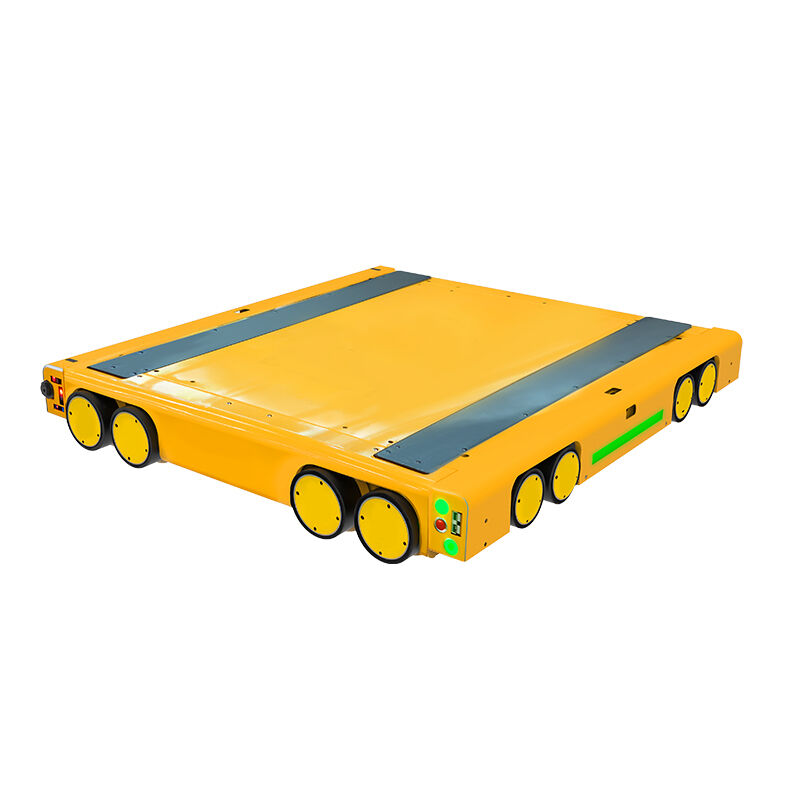

Shuttle Machine

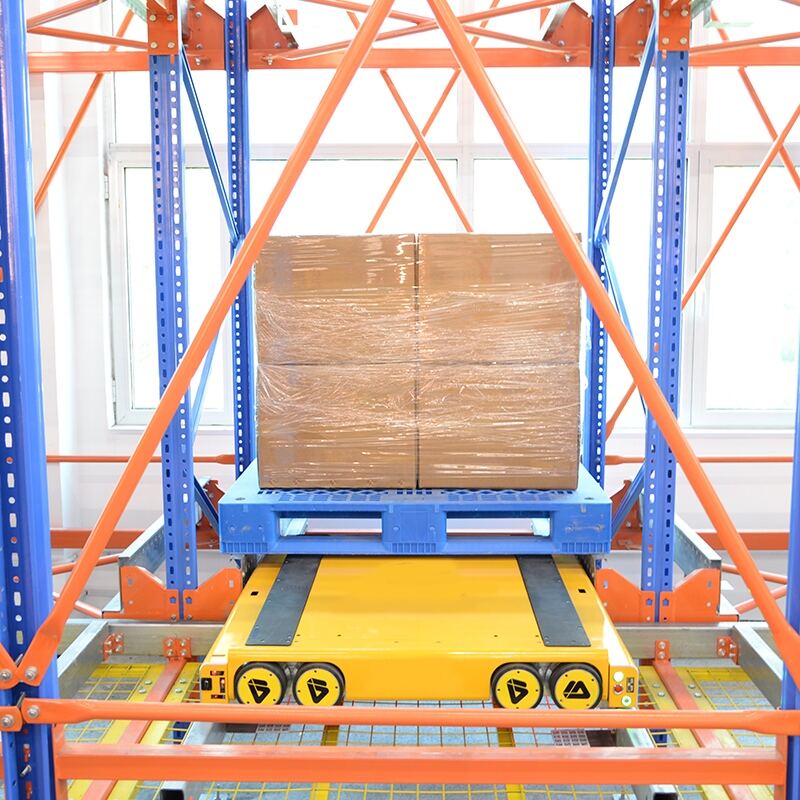

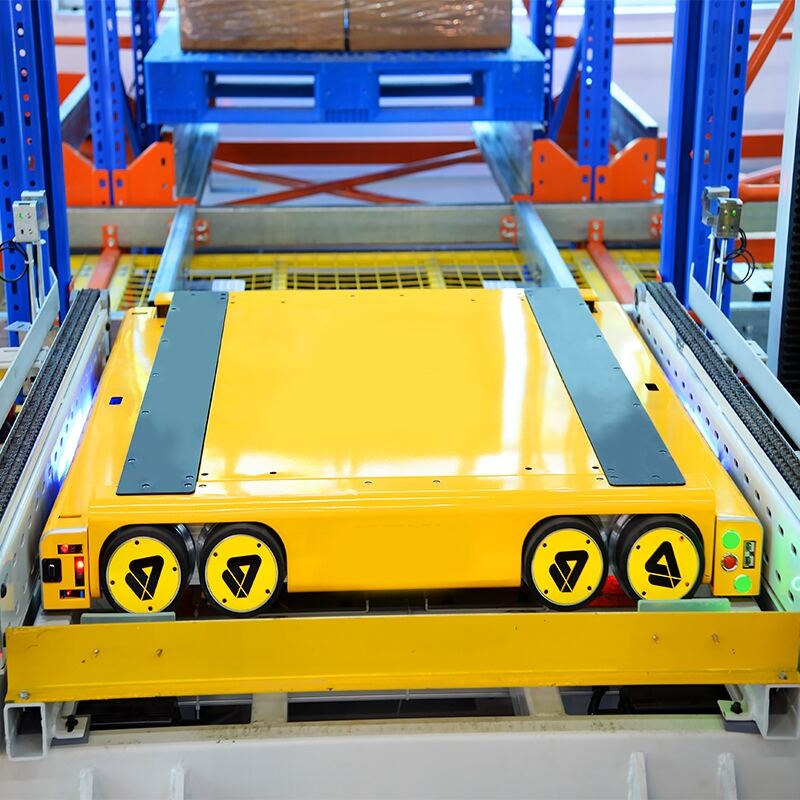

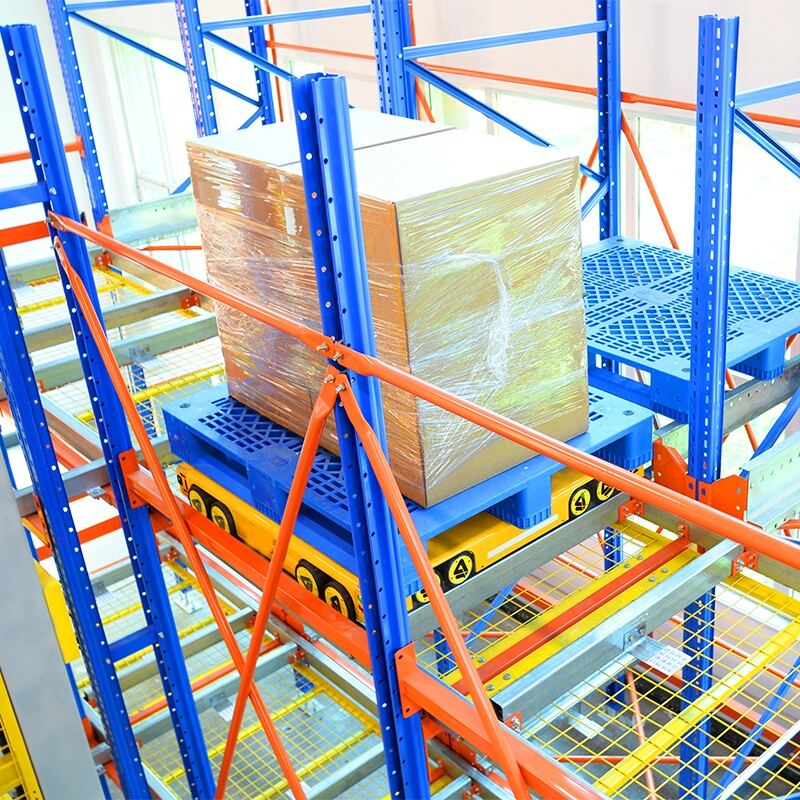

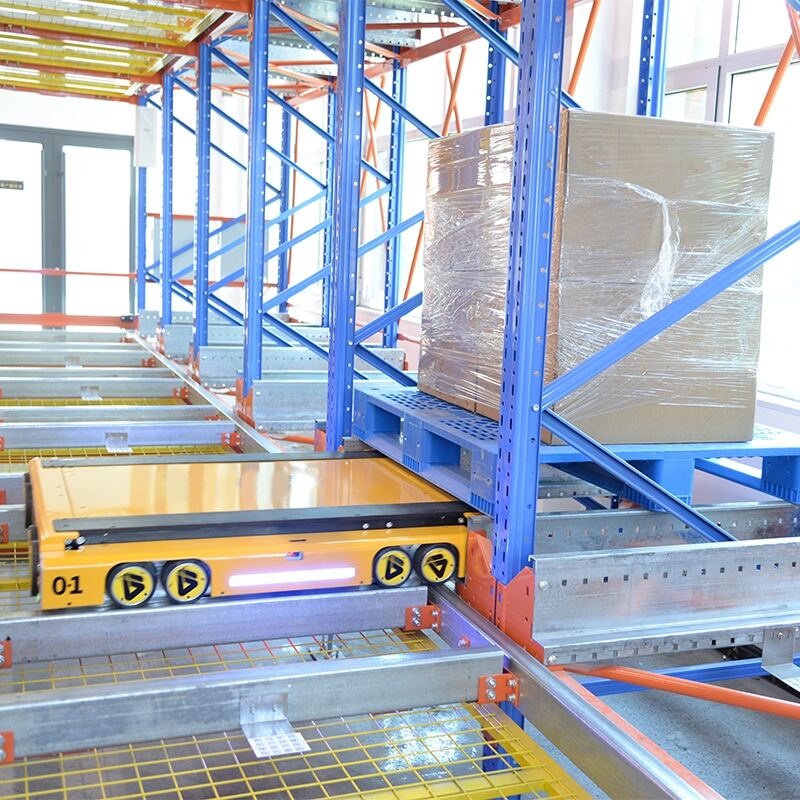

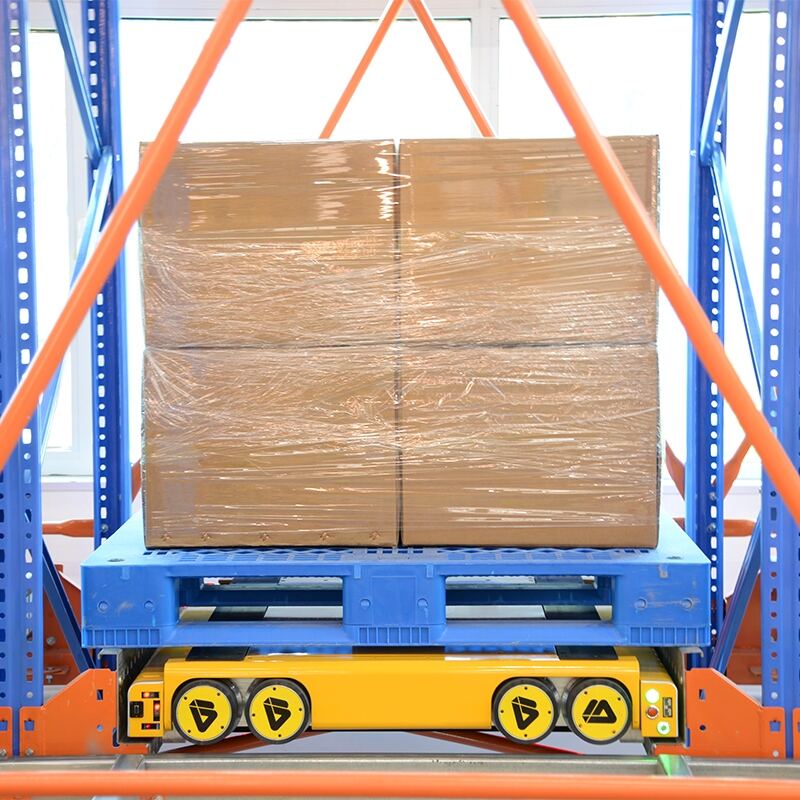

Shuttle machines are intelligent logistics handling equipment capable of flexible movement in four directions (forward, backward, left, right, up, and down) within the aisles of automated storage and retrieval systems (AS/RS). They are core handling equipment in AS/RS. By integrating mechanical structure, automated control, and intelligent algorithms, they break through the movement limitations of traditional warehousing equipment, becoming a key component of high-density warehousing systems.

Overview
Recommended Products

Product Information

Place of Origin	Shandong, China
Brand Name	wemet
Customized Products	All equipment can be customized.

Product Business Terms

Minimum Order Quantity	Single item
Packaging Details	Wooden box
Delivery Time	15~45 days (To be negotiated)
Supply Ability	300 acres per Month

Description

1.The all-gear transmission design ensures zero oil leakage, zero pollution, and greater safety.
2.Switching time is as fast as 3 seconds, making it lighter, thinner, and more flexible.
3.High-standard redundant design ensures product stability and durability.
4.Modular design achieves a modularization rate of over 90% and a failure rate of less than 0.01%.
5.Significantly reduces maintenance costs and time.
6.Full-body sensing and four-way adaptive obstacle avoidance.
Pallet detection provides real-time monitoring of pallet status.

Quick Detail

1.Motor drive
2.Lithium iron phosphate battery
3.Emergency stop button
4.Remote control handle
5.Laser obstacle avoidance
6.Floor change safety detection
Manual/automatic operation

Applications

E-commerce Retail Industry: In the e-commerce and retail sector, four-way shuttles are used for picking and replenishment operations, meeting the ever-increasing demand for online orders and significantly improving sorting efficiency and order processing capabilities.

Manufacturing Industry: In industries such as automobile manufacturing and home appliance manufacturing, four-way shuttles are used for parts storage and transportation, supporting automobile assembly and production, and improving the efficiency of material supply on production lines.

Pharmaceutical Cold Chain: The pharmaceutical industry has extremely high requirements for storage environments. Four-way shuttles can efficiently and accurately transport medicines in clean environments, ensuring the quality and safety of medicines. In cold chain logistics, four-way shuttles can operate stably at temperatures as low as -25°C.

Food and Beverage Industry: The food industry requires the rapid and accurate handling of large quantities of goods. The efficient handling capabilities and flexibility of four-way shuttles make them an ideal choice for food warehousing, maintaining product freshness and quality.

Specifications

Model	Standard BCS01	Heavy-Duty BCS02	Two-axis BCS03	Custom Made
Dimensions	10901030150mm	10901030150mm	10901030132mm	1. Customized Temperature Environment: Suitable for harsh environments such as cold chain and high temperatures, with a range of -25°C to 60°C.
Applicable Pallets	1100≤W≤1500mm	1100≤W≤1500mm	1100≤W≤1500mm
Applicable Pallets	1000≤D≤1300mm	1000≤D≤1300mm	1000≤D≤1300mm	2. Customized Heavy-Duty Dimensions: Available for extended, wide, ultra-narrow, and extra-heavy loads.
Weight	400kg	400kg	400kg
Rated Load	1000kg	1500kg	1000kg/1500kg	3. Customized Battery Capacity: Available for increased battery capacity and extended battery life.
Operating Speed	1.2-1.5m/s	1.2-1.5m/s	1.2-1.5m/s
Reversal Time	3s	3s	3s	4. CE Version.
Positioning Accuracy	±2mm	±2mm	±2mm
Battery Capacity	40AH	40AH	40AH
Charging Time	1-2h	1-2h	1-2h
Battery Type	Lithium iron phosphate	Lithium iron phosphate	Lithium iron phosphate
Running Time	6-8h	6-8h	6-8h
Applicable Temperature	-10°C~45°C	-10°C~45°C	-10°C~45°C

* Support on-demand customization, the parameters are for reference only, please consult the WEMET Machinery Sales Department for details.

Advantages

Can store up to 90% of the total area
Can store with both Last In First Out (LIFO) and First In First Out (FIFO) system
Can reduce crashed between forklift and rack
Intelligent Upgrade: With the maturity of AI and 5G technologies, four-way shuttle machines are developing towards intelligent collaboration. AI algorithms optimize real-time vehicle scheduling and path planning, while 5G low-latency communication enables real-time data interaction between devices, improving system response speed.
Green and Energy-Saving: Future four-way shuttle machines will place greater emphasis on green energy and lightweight design, including energy recovery technology and the application of new materials such as carbon fiber, driving a continuous reduction in shuttle machine energy consumption of over 30%.
Flexible Expansion: Ultra-thin shuttle machines (height ≤ 120mm) will be suitable for narrow spaces with shelf spacing ≤ 800mm, such as e-commerce order picking centers. Modular design supports quick replacement of components such as forks and batteries, allowing the equipment to adapt to different bin sizes.
