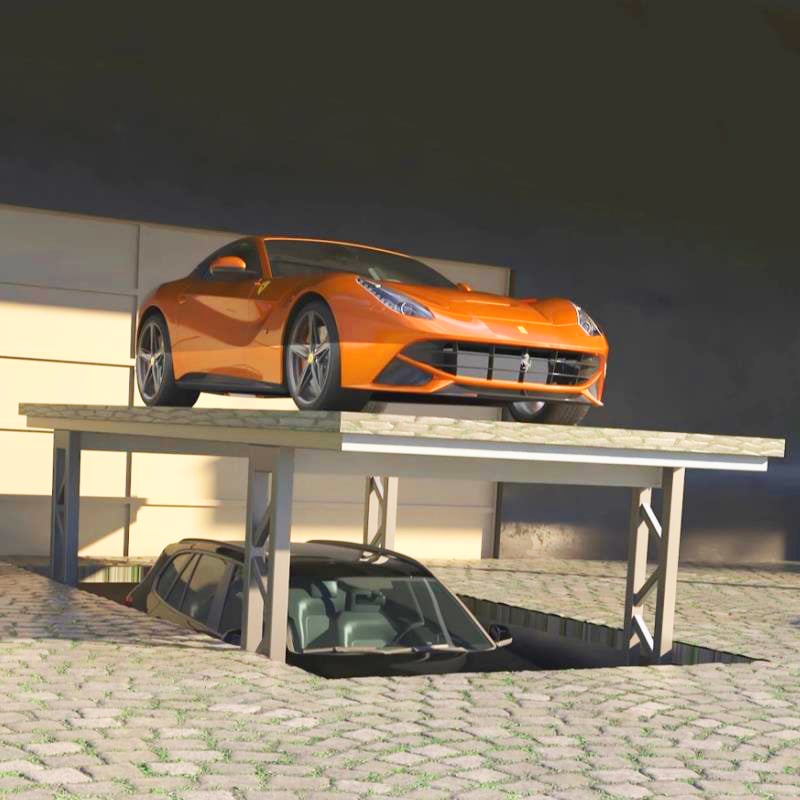

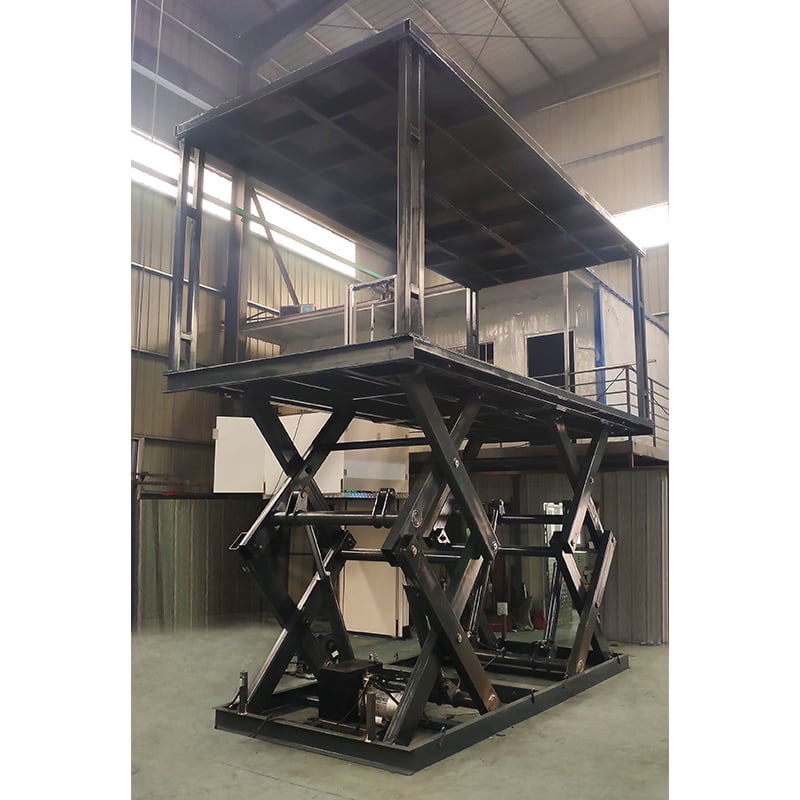

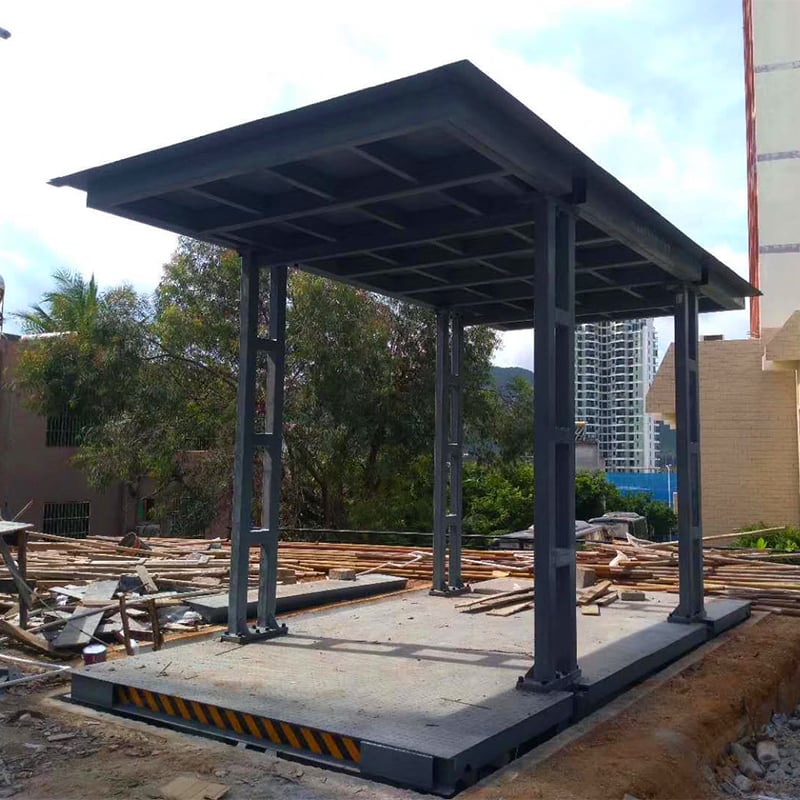

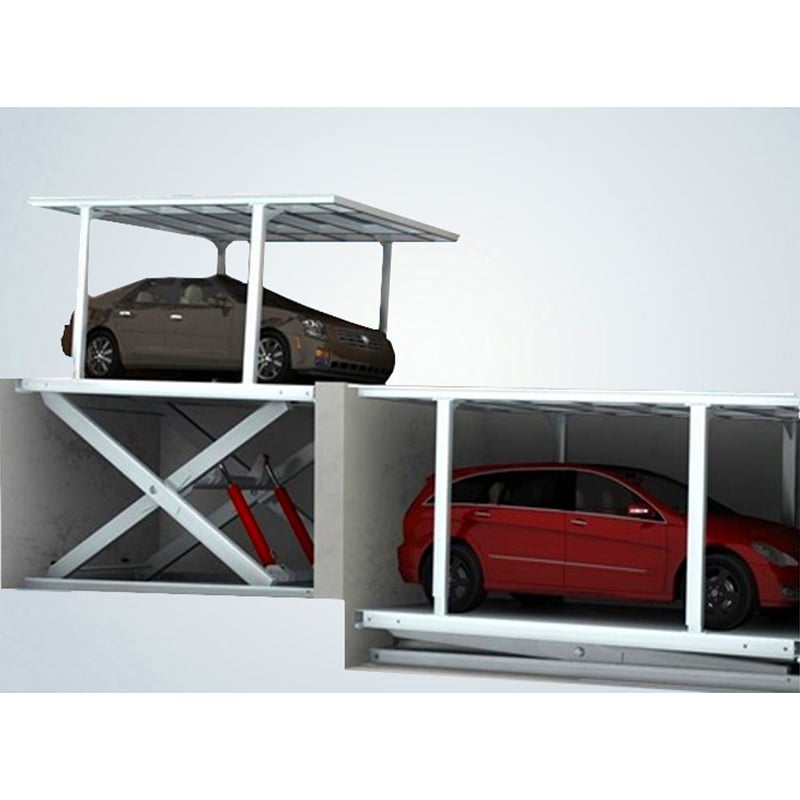

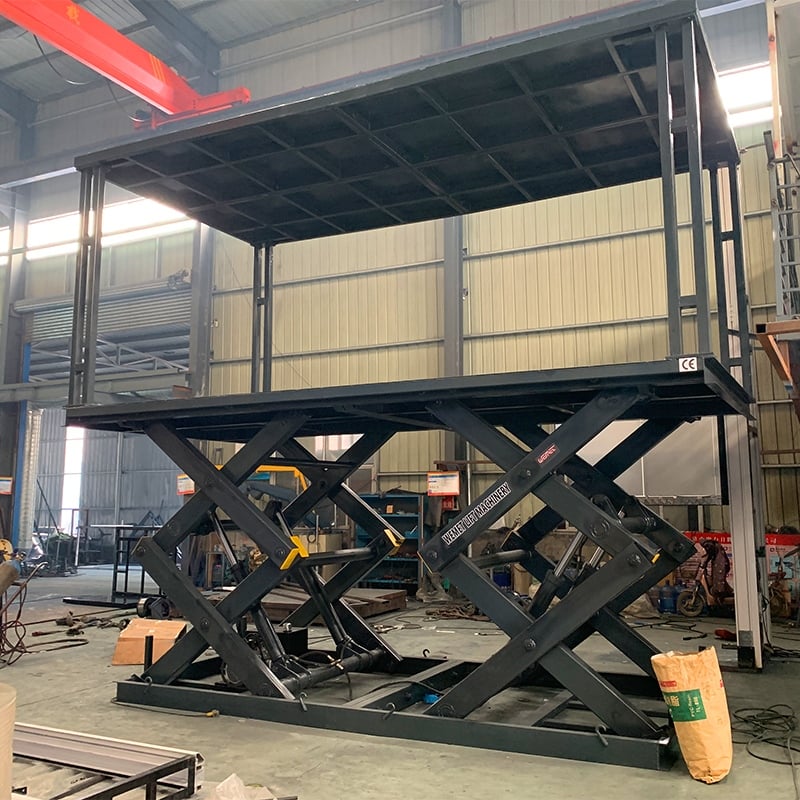

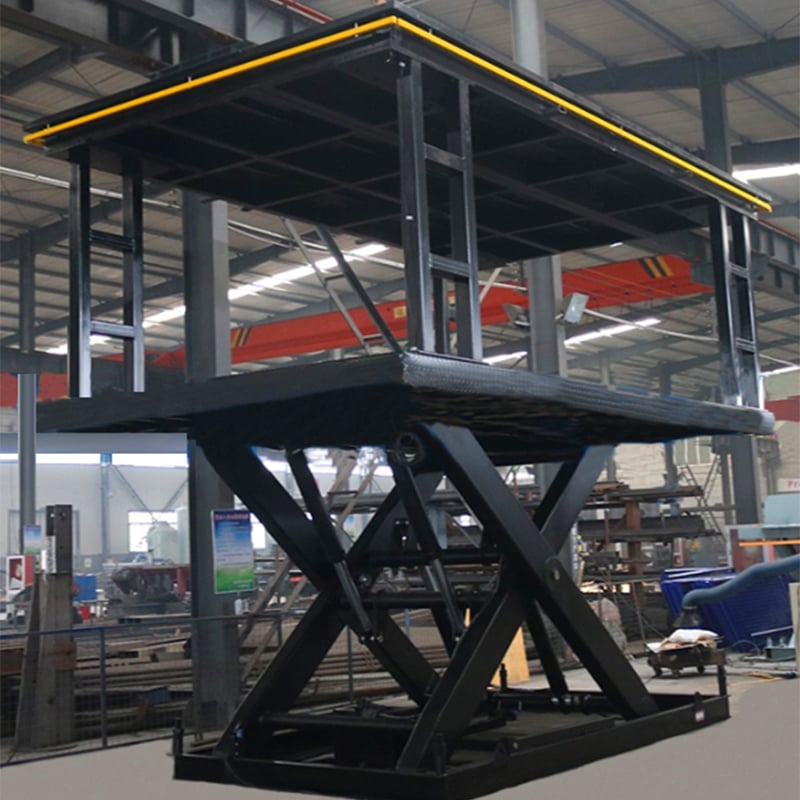

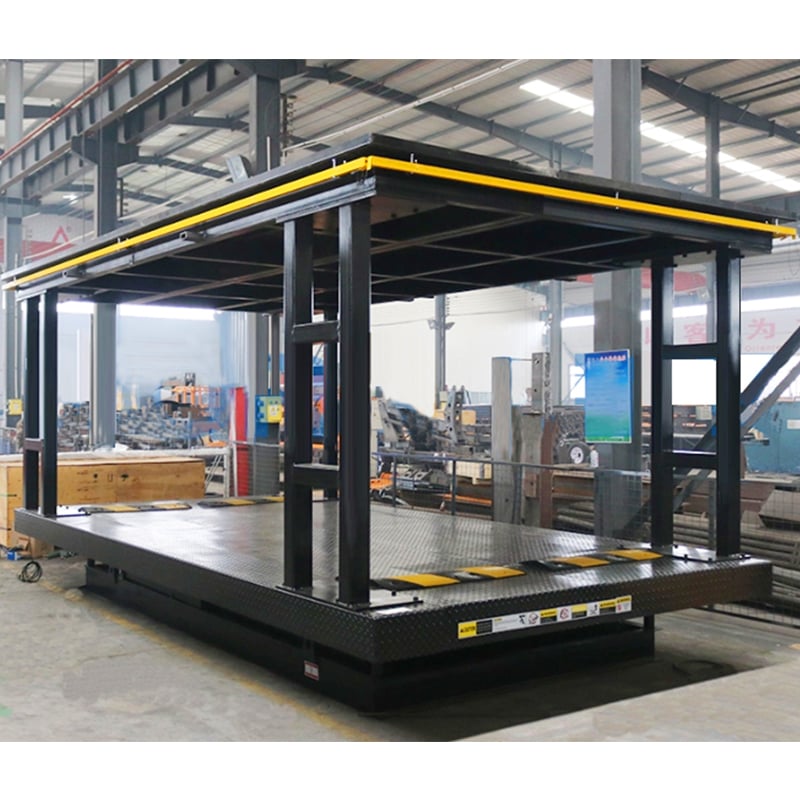

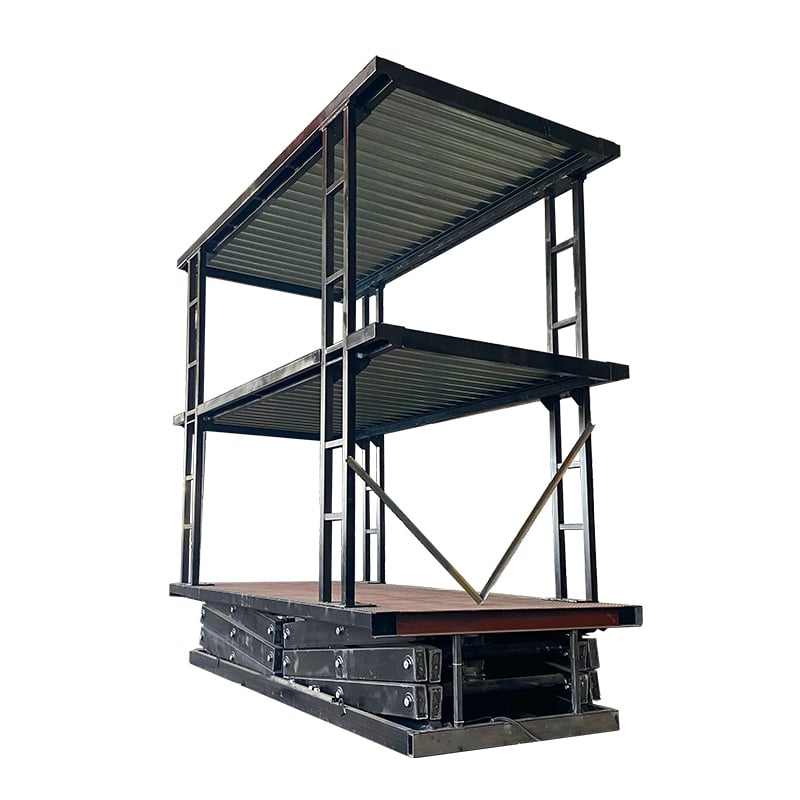

Double Layer Scissor-type Car Lift（Parking Lift Platform）
The scissor-type car lift is a specialized hydraulic lifting device used for transporting goods between building floors. It is mainly used for car lifting operations in workshops, warehouses, multi-level parking garages, and underground parking garages.
- Overview
- Recommended Products
Product Information
| Place of Origin | Shandong, China |
| Brand Name | wemet |
| Certification | CE/ISO |
| Customized Products | All equipment can be customized. |
Product Business Terms
| Minimum Order Quantity | Single item |
| Packaging Details | Wooden box |
| Delivery Time | 15~45 days (To be negotiated) |
| Supply Ability | 300 acres per Month |
Description
1.Top platform reserved decoration installation space, perfect fusion after closed with the surrounding environment.
2.Optional double or triple levels platform.
3.Fully formed manganese steel hinge boom with uniform thickness.
4.H - beam wide base frame enhances stability.
5.45# carbon round steel finishing pin, wear resistant bushing.
6.Overload alarm, overload protection to prevent the hydraulic system.
7.Emergency stop control button.
8.Emergency manual descent valve, safely descend to the lowest layer.
9.Equipped with explosion-proof valve, oil cylinder can be automatic pressure maintaining after tubing burst.
Quick Detail
1.Manual emergency lowering
2.Emergency stop button
3.Platform control panel priority
4.Landing door and equipment linke control
5.Anti-fall prevention mechanism
6.Safety touch panel
7.Platform overload protection

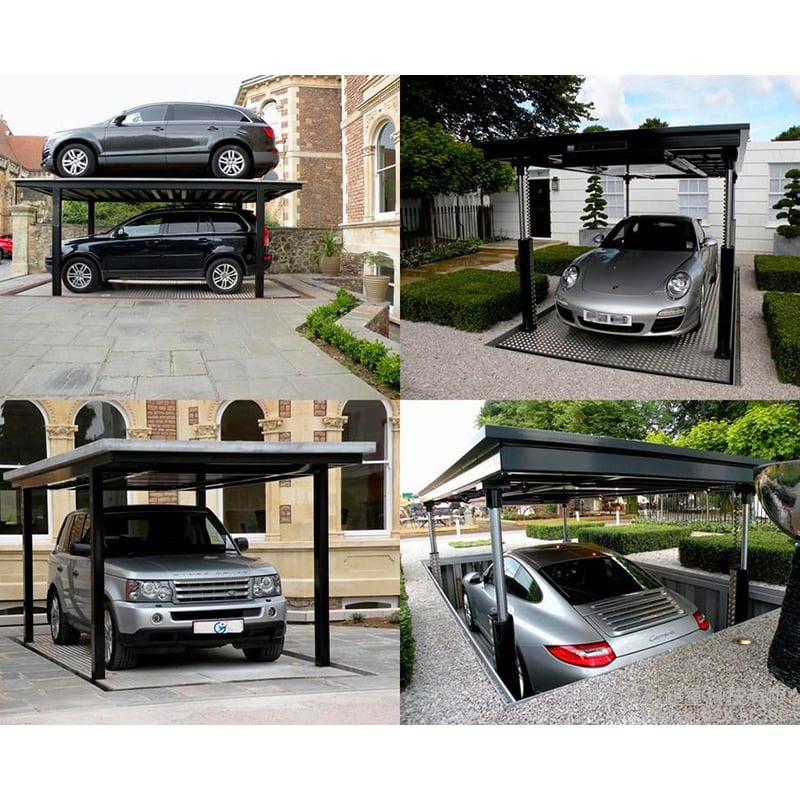

Applications
Scissor-type car lifts are widely used in:
• Auto repair shops: for transporting and repairing cars across floors
• Multi-level parking garages: lifting cars between underground and ground levels
• Car dealerships: multi-level transport of vehicles for display
• Parking lots: vehicle lifting in multi-level parking garages
• Logistics warehousing: loading, unloading, and warehouse management
Specifications
| Model | Loading capacity(T) | Closed height(MM) | Table size(MM) | Lift Height(MM) | Weight(KG) | Motor Power(KW) |
| SJG-P2-3.2 | 2 | 650 | 5500*3000 | 3200 | 3700 | 11kw |
| SJG-P3-3.2 | 3 | 650 | 5500*3000 | 3200 | 4100 | 11kw |
| SJG-P4-3.2 | 4 | 700 | 5500*3000 | 3200 | 4400 | 11kw |
| SJG-P5-3.2 | 5 | 700 | 5500*3000 | 3200 | 4700 | 11kw |
| SJG-P3-5 | 3 | 850 | 6000*3000 | 5000 | 5700 | 11kw |
| SJG-P5-5 | 5 | 1050 | 6000*3000 | 5000 | 6400 | 11kw |
| SJG-P8-5 | 8 | 1050 | 6000*3000 | 5000 | 7200 | 11kw |
* Support on-demand customization, the parameters are for reference only, please consult the WEMET Machinery Sales Department for details.
