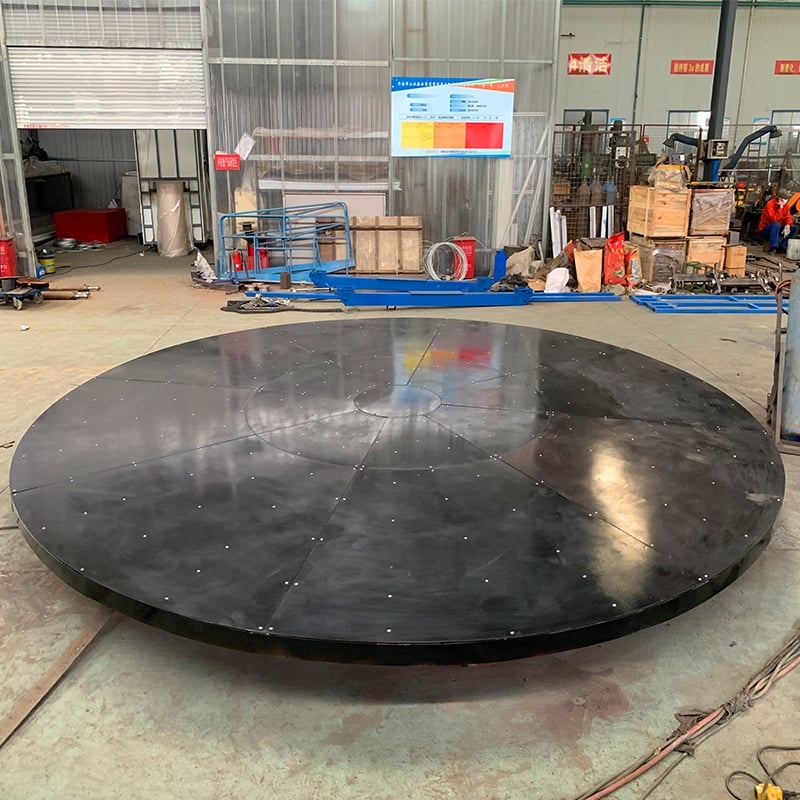

Pin Gear Turntable
The pin gear turntable is a specialized device that utilizes pin gear transmission technology, primarily used for car display, repair, and turning operations. It employs a motor-driven drive gear that meshes with a pin wheel, enabling the turntable to rotate smoothly 360 degrees. It features high load-bearing capacity, smooth transmission, and high positioning accuracy.
- Overview
- Recommended Products
Product Information
| Place of Origin | Shandong, China |
| Brand Name | wemet |
| Certification | CE/ISO |
| Applicable Industries | Car showrooms, 4S stores, auto shows, etc. |
| Customized Products | All equipment can be customized. |
Product Business Terms
| Minimum Order Quantity | Single item |
| Packaging Details | Wooden box |
| Delivery Time | 15~45 days (To be negotiated) |
| Supply Ability | 300 acres per Month |

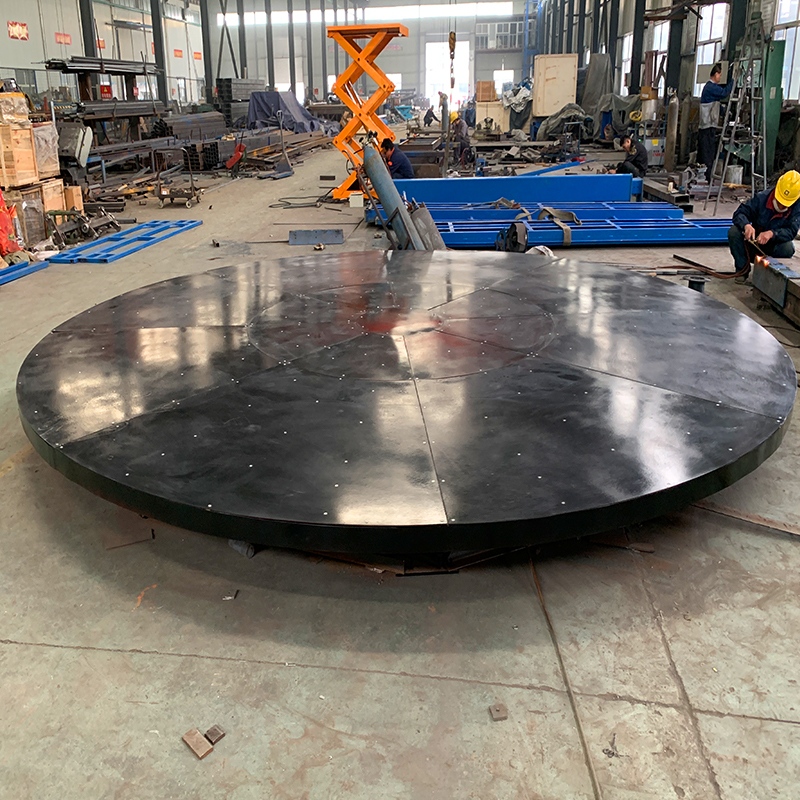

Description
1.Max loading capacity to 20 tons.
2.Diameter 4~7m.
3.Height 300-350mm.
4.The pin tooth plate is made of 10mm steel plate processed by automatic cutting machine.
5.The pin teeth are machined by 45# steel bar.
6.With Angle control function.
Fast speed, high motor power.
Quick Detail
1.Core drive unit
2.Finishing pin rail plate
3.High strength silent wheels
4.Center sleeve device
5.Operation control box
Touch screen control pane
Applications
Pin Gear Turntable Application Scenarios

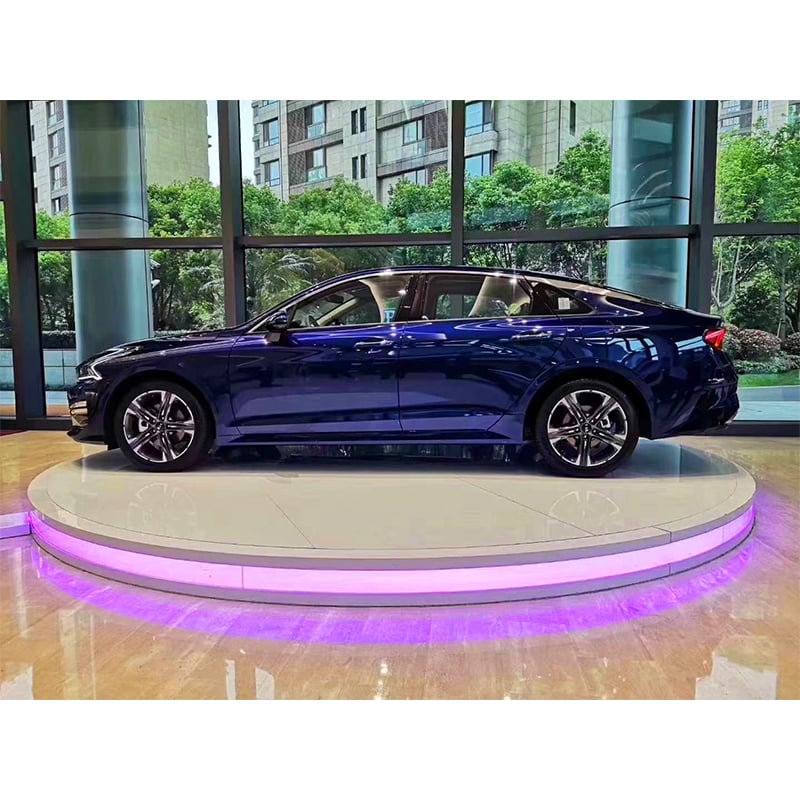

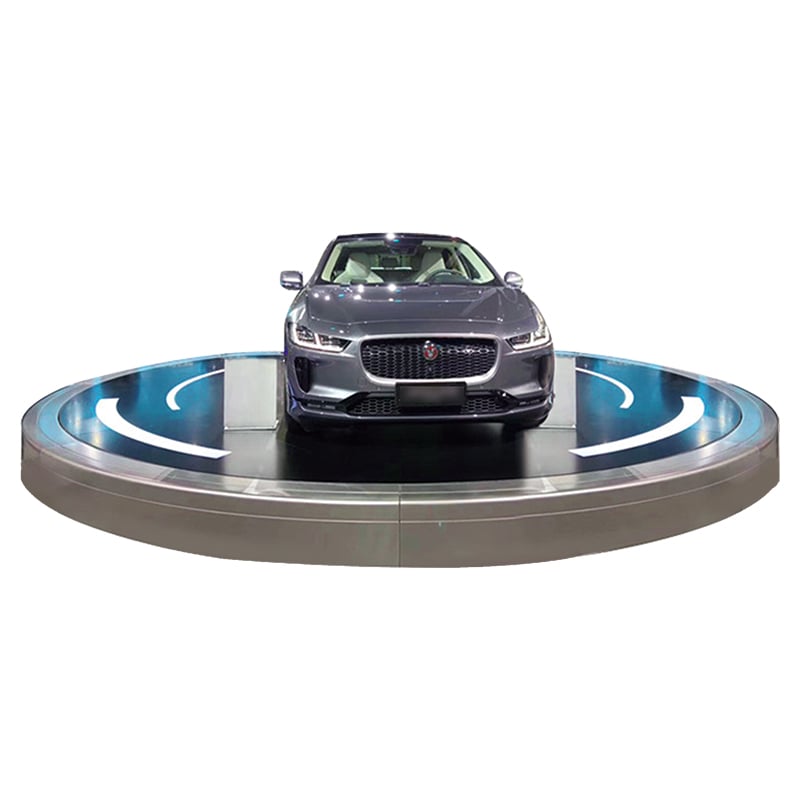

• Car Showrooms: Used in 4S dealerships for displaying new cars, allowing for 360-degree rotation to showcase the vehicle's exterior and interior.

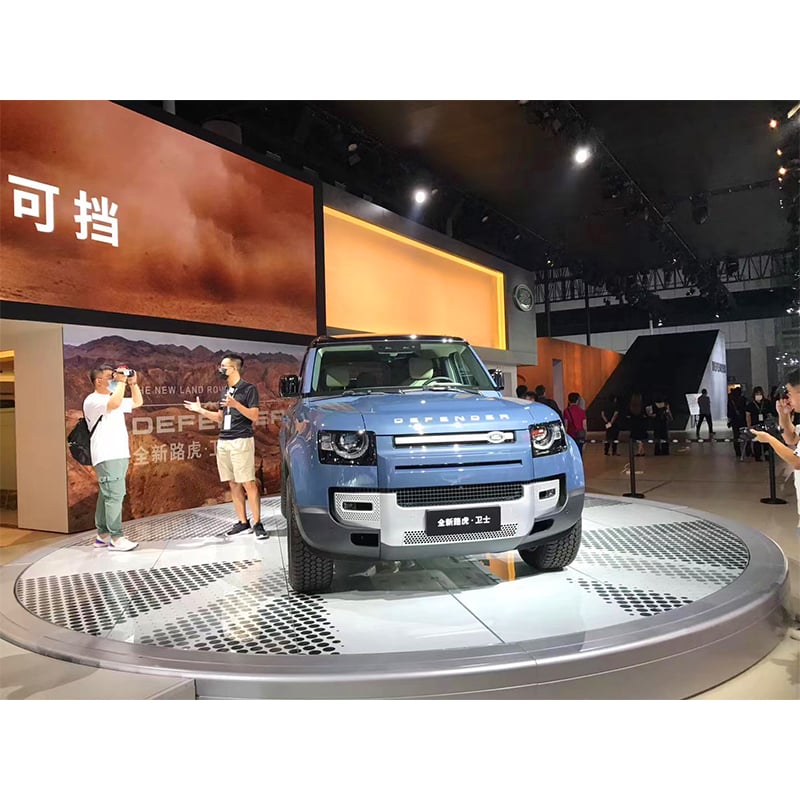

• Auto Shows: Serves as a platform in large-scale auto shows, enhancing brand presentation.
• Auto Repair: Used in repair shops for chassis inspections, tire changes, and other operations, improving repair efficiency.
• Auto Production: Used on production lines for body positioning and assembly, facilitating worker operation.
Specifications
Turntable Diameter |
Load Capacity |
Turntable Height |
Motor power |
2000mm |
0-1t |
250mm |
0.75kw |
2000mm |
2-3t |
300mm |
1.1kw |
2500mm |
0-1t |
250mm |
0.75kw |
2500mm |
2-3t |
300mm |
1.1kw |
3000mm |
0-1t |
330mm |
0.75kw |
3000mm |
2-3t |
330mm |
1.1kw |
3500mm |
0-1t |
330mm |
0.75kw |
3500mm |
2-3t |
330mm |
1.1kw |
4000mm |
1-3t |
350mm |
1.1kw |
4000mm |
4-5t |
350mm |
1.1kw |
4500mm |
1-3t |
350mm |
1.1kw |
4500mm |
4-5t |
350mm |
1.1kw |
5000mm |
1-3t |
350mm |
1.1kw |
5000mm |
4-5t |
350mm |
1.1kw |
5500mm |
1-3t |
350mm |
1.1kw |
5500mm |
4-5t |
350mm |
1.1kw |
6000mm |
1-3t |
350mm |
1.1kw |
6000mm |
4-5t |
350mm |
1.1kw |
* Support on-demand customization, the parameters are for reference only, please consult the WEMET Machinery Sales Department for details.
Advantages
SPin-gear turntable transmissions offer significant advantages over traditional gear transmissions: single-tooth contact stress is reduced by approximately 38%, and the ultimate torque carrying capacity is increased by over 40%, making them particularly suitable for low-speed, heavy-load applications. This technology also features smooth transmission, uniform wear distribution, and superior impact resistance.
